www.stryker.com 3006-209-001 REV B 43
Operation
Footboard LED indicators (Continued)
Indicator LED illuminates amber
C Patient control Fowler lock
The patient control Fowler lock is on
D
Patient control gatch lock The patient control gatch lock is on
E
Patient control bed height lock The patient control bed height lock is on
F Zone 1
Bed exit is on and zone 1 is active. The LED will
blink amber if a bed exit event occurs.
G Zone 2
Bed exit is on and zone 2 is active. The LED will
blink amber if a bed exit event occurs.
H Zone 3
Bed exit is on and zone 3 is active. The LED will
blink amber if a bed exit event occurs.

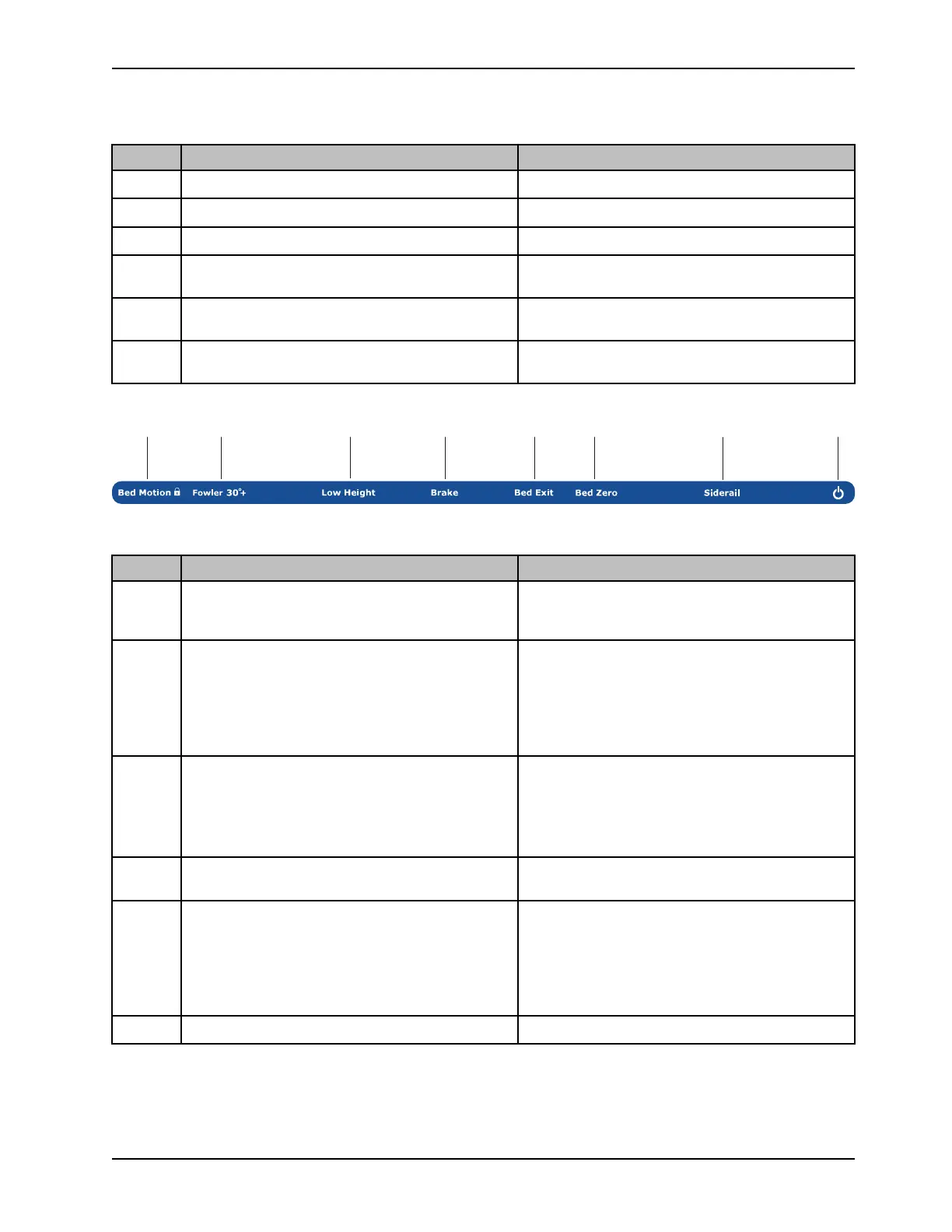

Figure 27: Footboard LED indicators
Indicator LED illuminates amber
A
Bed motion lock
Bed motion lock is activated or when the patient
control (Fowler, gatch, bed up/down) lock buttons
are activated
B Fowler 30°+
Fowler 30°+ is locked. The LED will blink amber if:
• iBed Awareness system is on
• Fowler 30°+ is being monitored and the Fowler
goes below 30 degrees
• Fowler 30°+ is turned off
C
Low height
Bed is in low height. The LED will blink amber if:
• iBed Awareness system is on
• Low height is being monitored
• Bed is not in low height
D Brake
Brake is set, and will blink amber if the brake is not
set
E
Bed exit (optional)
Bed exit is armed. The LED will blink amber if:
• Bed exit is turned off while the iBed Awareness
system is turned on
• Bed exit alarms while monitored by the iBed
Awareness system
F
Bed zero (optional iBed Awareness)
Bed zero is successful
