Chapter 5 Servicing Infrastructure Boards and Components 5-11

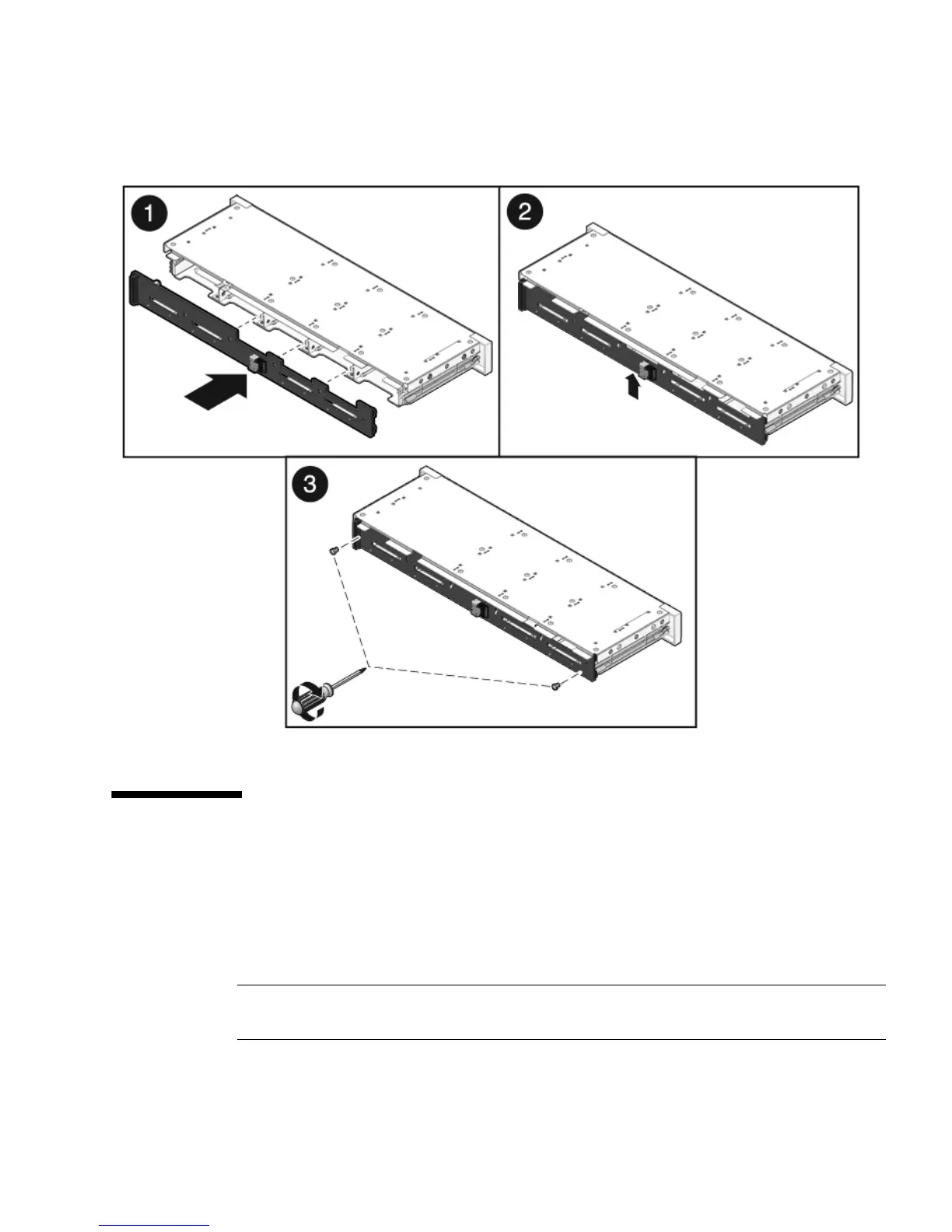

FIGURE 5-6 Installing the Drives Backplane
5.4 Servicing the Front Control Panel Light
Pipe Assembly
You must remove the drives cage and backplane to service the front control panel
light pipe assemblies.
Note – FRU: This field-replaceable unit should be replaced only by qualified service
technicians. Contact your Sun Service representative for assistance.
