Sun Microsystems Sun Fire X4150 - Removing a Server From the Rack

2-6 Sun Fire X4150 Server Service Manual • November 2009
3. From the front of the server, release the two slide release latches (FIGURE 2-3).
Squeeze the green slide release latches to release the slide rails.

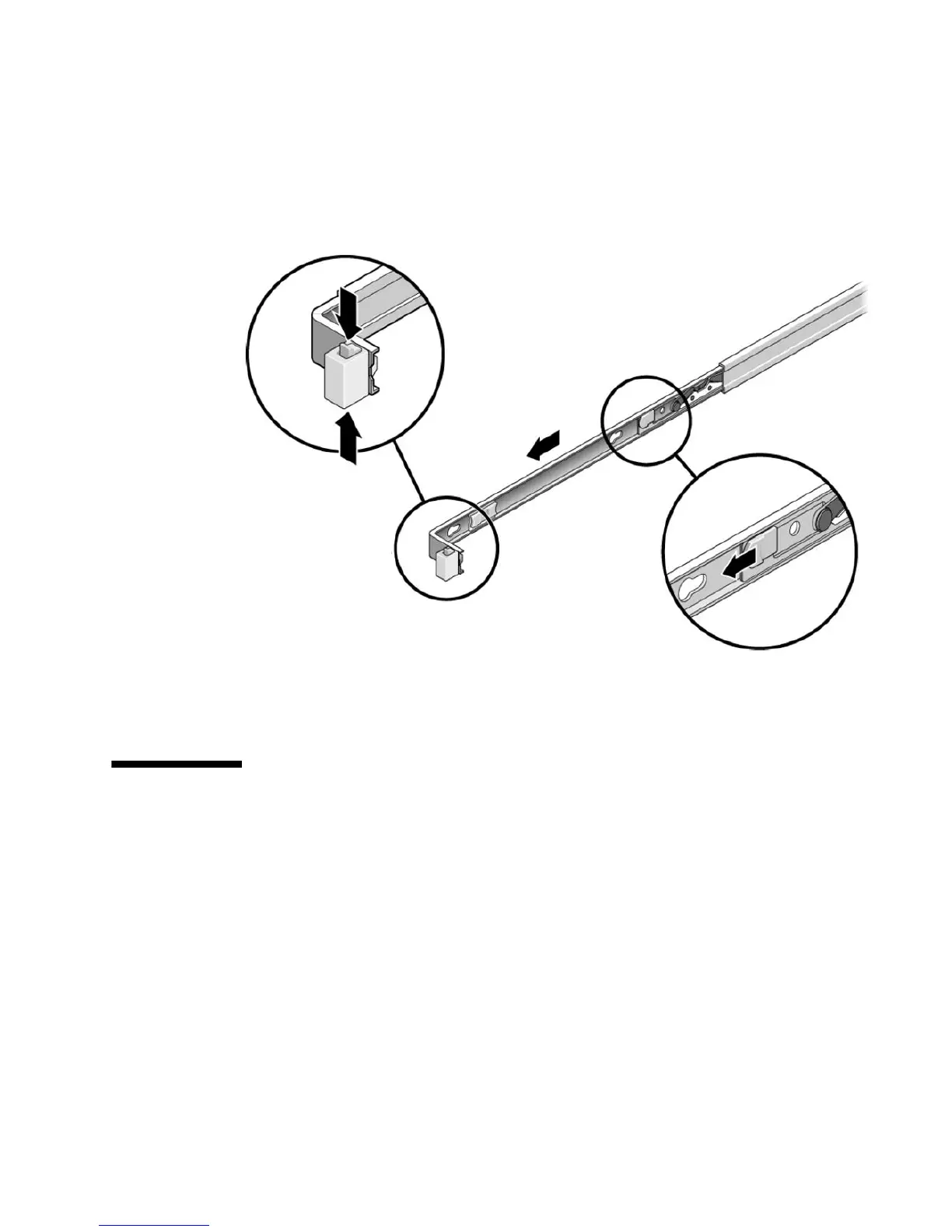

FIGURE 2-3 Slide Release Latches
4. While squeezing the slide release latches, slowly pull the server forward until
the slide rails lock into place.
2.6 Removing a Server From the Rack
The server must be removed from the rack to service the following components:
■ Motherboard
■ Power distribution board
■ Paddle card
■ Disk cage
■ Drives backplane
■ Front panel light-pipe assemblies
