1.3 Sun Fire X4150 Server Front Panel
Features

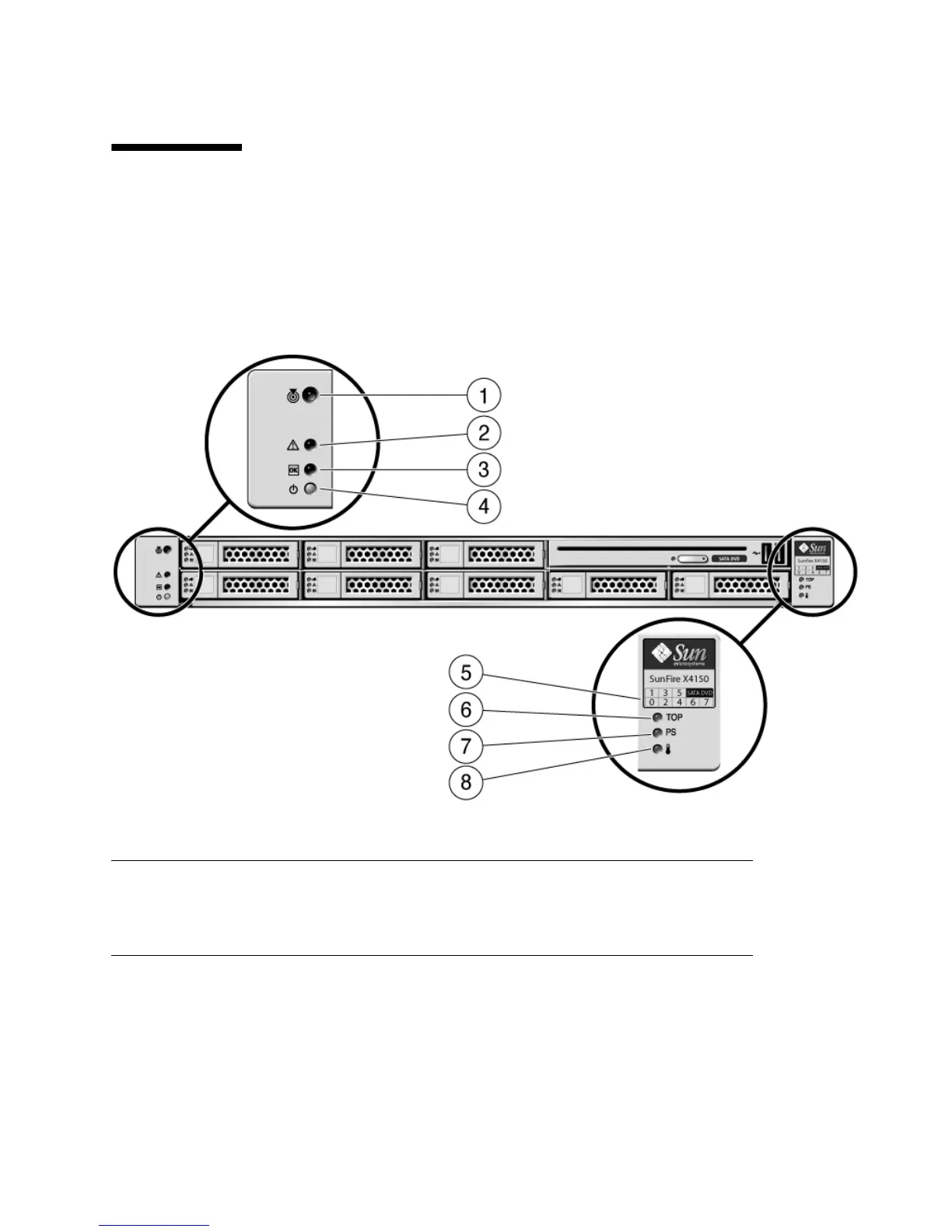

FIGURE 1-1 shows front panel features on the Sun Fire X4150 Server.
FIGURE 1-1 Front Panel Features
Figure Leg end
1 Locator LED/Locator button (white) 5 Drives map
2 Service Action Required LED (amber) 6 Power Supply Service Required LED (amber)
3 Power/OK LED (green) 7 System Overtemperature LED (amber)
4 Power button 8 Fan Module Service Required LED (amber)
