5-16 Sun Fire X4150 Server Service Manual • November 2009

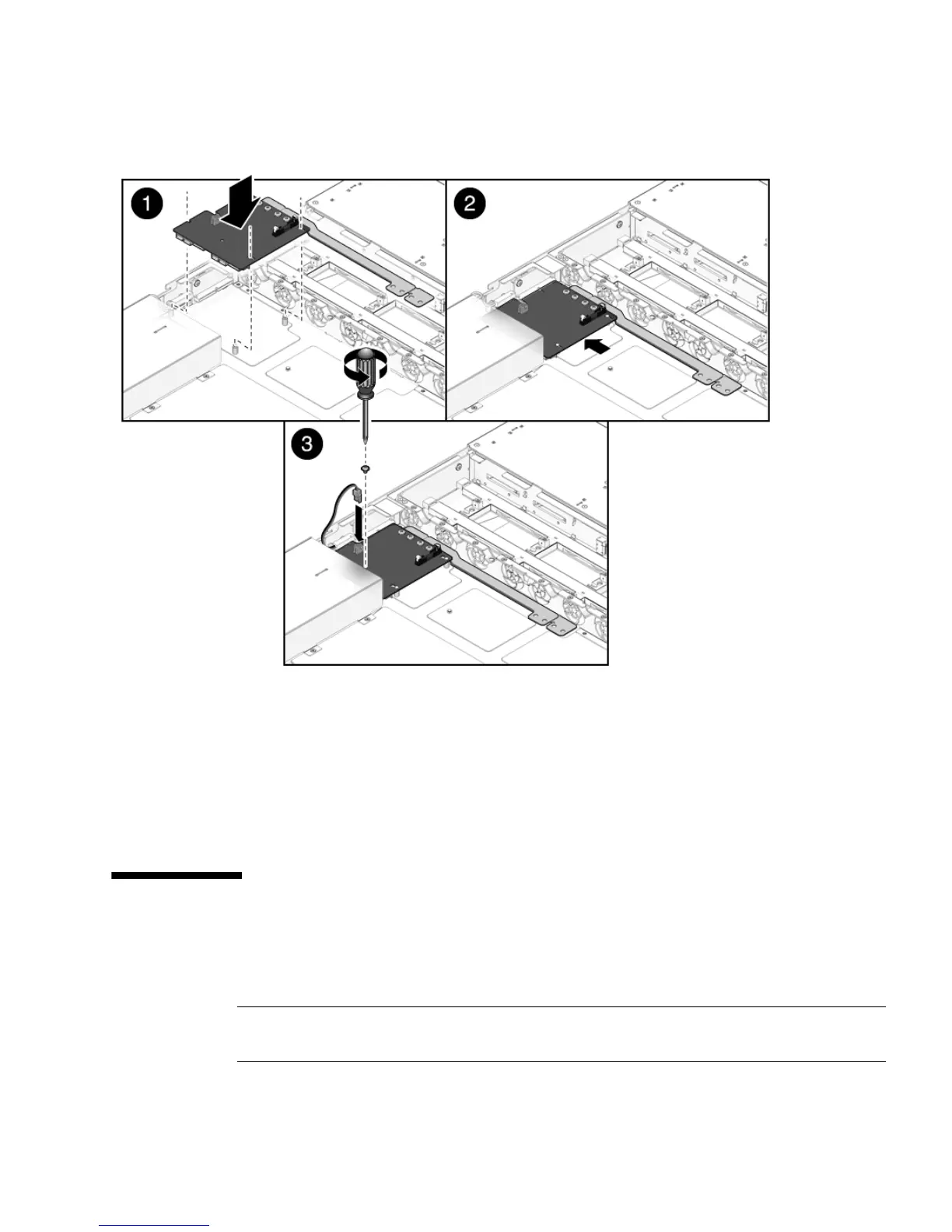

FIGURE 5-9 Installing the Power Distribution Board
5. Install the power supplies.
Slide each power supply into its bay until it locks into place.
See Section 3.4.3, “Removing a Power Supply” on page 3-15.
6. Install the motherboard assembly.
See Section 4.6.1, “To Install the Motherboard Assembly” on page 4-25.
5.6 Servicing the Paddle Card
The paddle card assembly includes the top cover interlock switch.
Note – FRU: This field-replaceable unit should be replaced only by qualified service
technicians. Contact your Sun Service representative for assistance.
