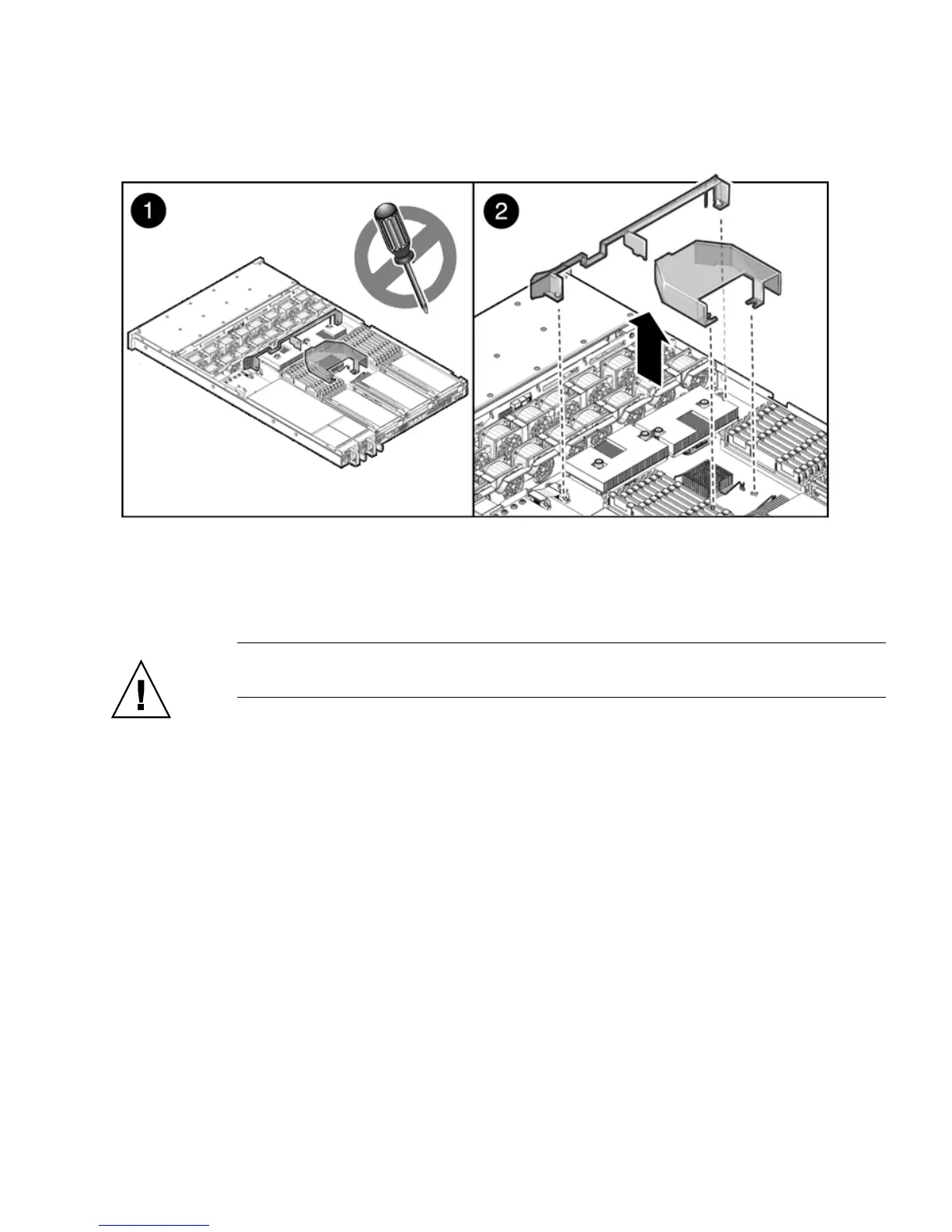

FIGURE 4-6 Removing the Air Baffle
▼ To Install the Air Baffle
Caution – When the server is in operation, ensure that the air baffle is correctly
installed to prevent the system from overheating.
1. Install the air baffle into the chassis as shown in
FIGURE 4-7.
Ensure that the air baffle is aligned and fully seated in the chassis.
2. Return the server to operation.
a. Install the top cover.
See Section 6.1, “Installing the Top Cover” on page 6-2.
b. Slide the server into the rack.
See Section 6.3, “Returning the Server to the Normal Rack Position” on
page 6-5.
c. Reconnect the power cord (or cords) to the power supply (or supplies).
Verify that the AC Present LED is lit.
See Section 6.4, “Powering On the Server” on page 6-6.
