Chapter 5 Servicing Infrastructure Boards and Components 5-7

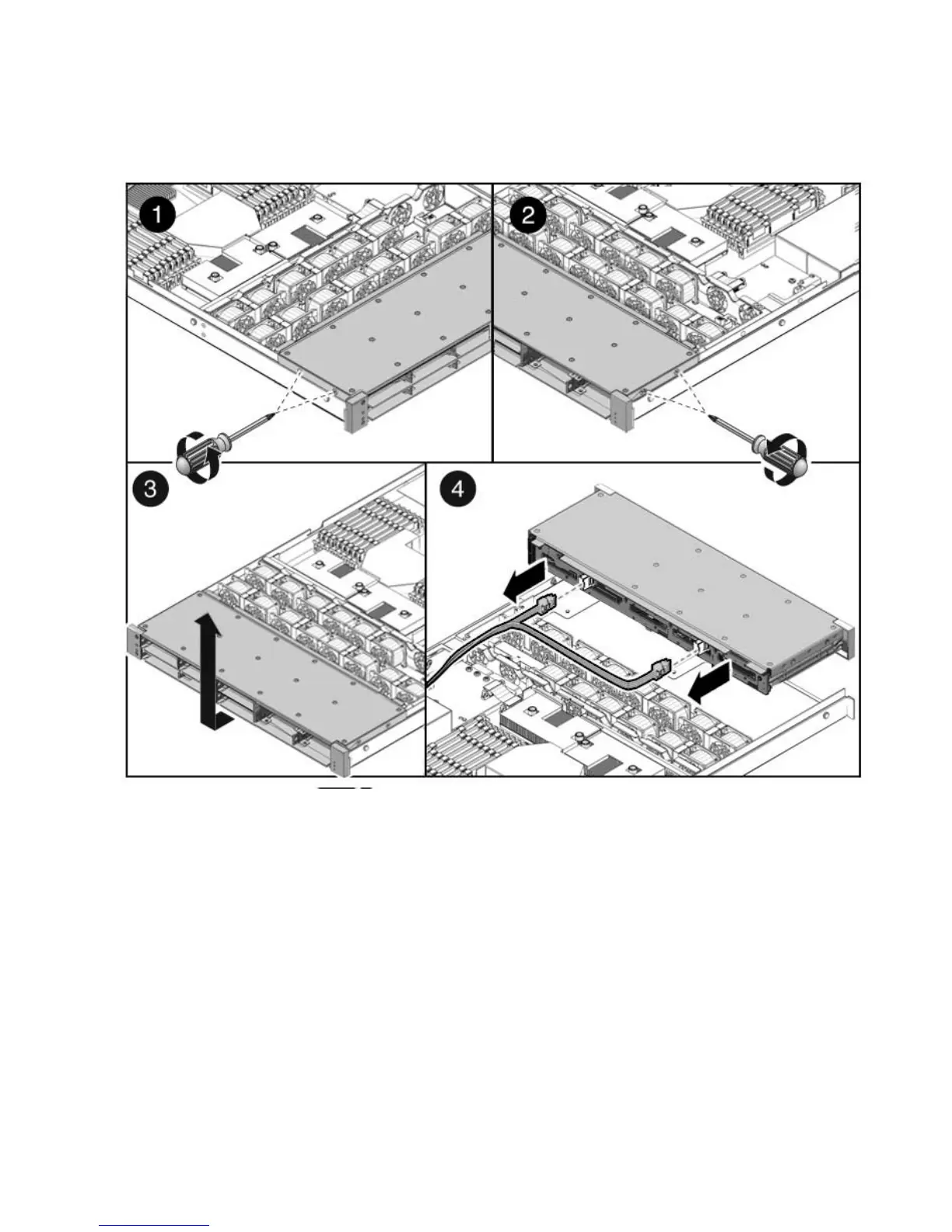

FIGURE 5-3 Removing the Drives Cage
5.2.2 Installing the Drives Cage
1. Connect the drive data cables.
Press the connector into its socket until it snaps into place.
2. Position the drive cage in the chassis, over its standoffs (
FIGURE 5-4 [1]).
