1.5 Illustrated Parts Breakdown
The following illustrations provide exploded views of Sun Fire X4150 Server system
components. Use these illustrations, and the accompanying tables, to identify parts in
your system.

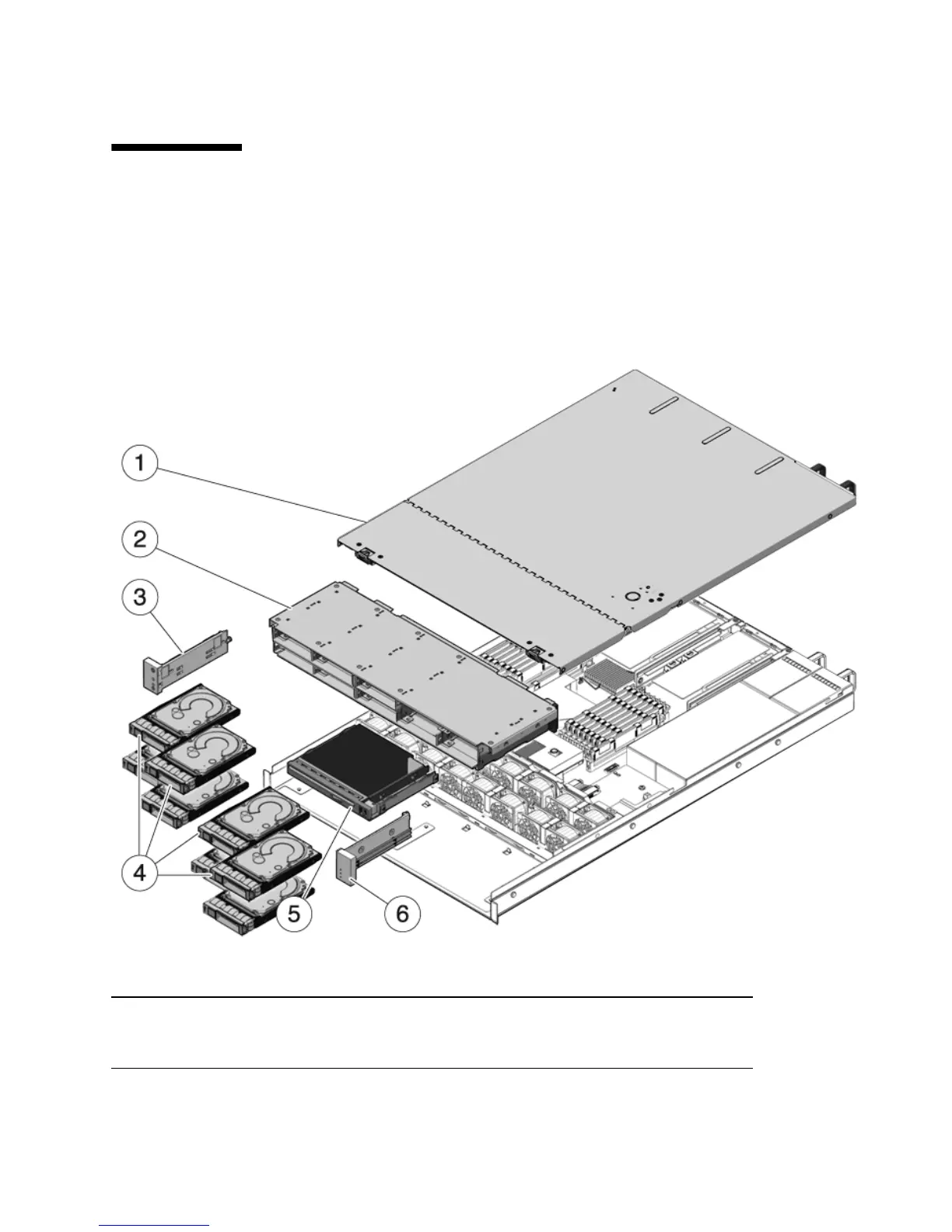

FIGURE 1-3 I/O Components (Sun Fire X4150 Server)
Figure Leg end
1 To p Cove r 4 Drivess
2 DrivesCage 5 DVD/USB Module
3 Left Control Panel Light Pipe Assembly 6 Right Control Panel Light Pipe Assembly
