Sun Microsystems Sun Fire X4150 - Installing a Fan Module

3-12 Sun Fire X4150 Server Service Manual • November 2009

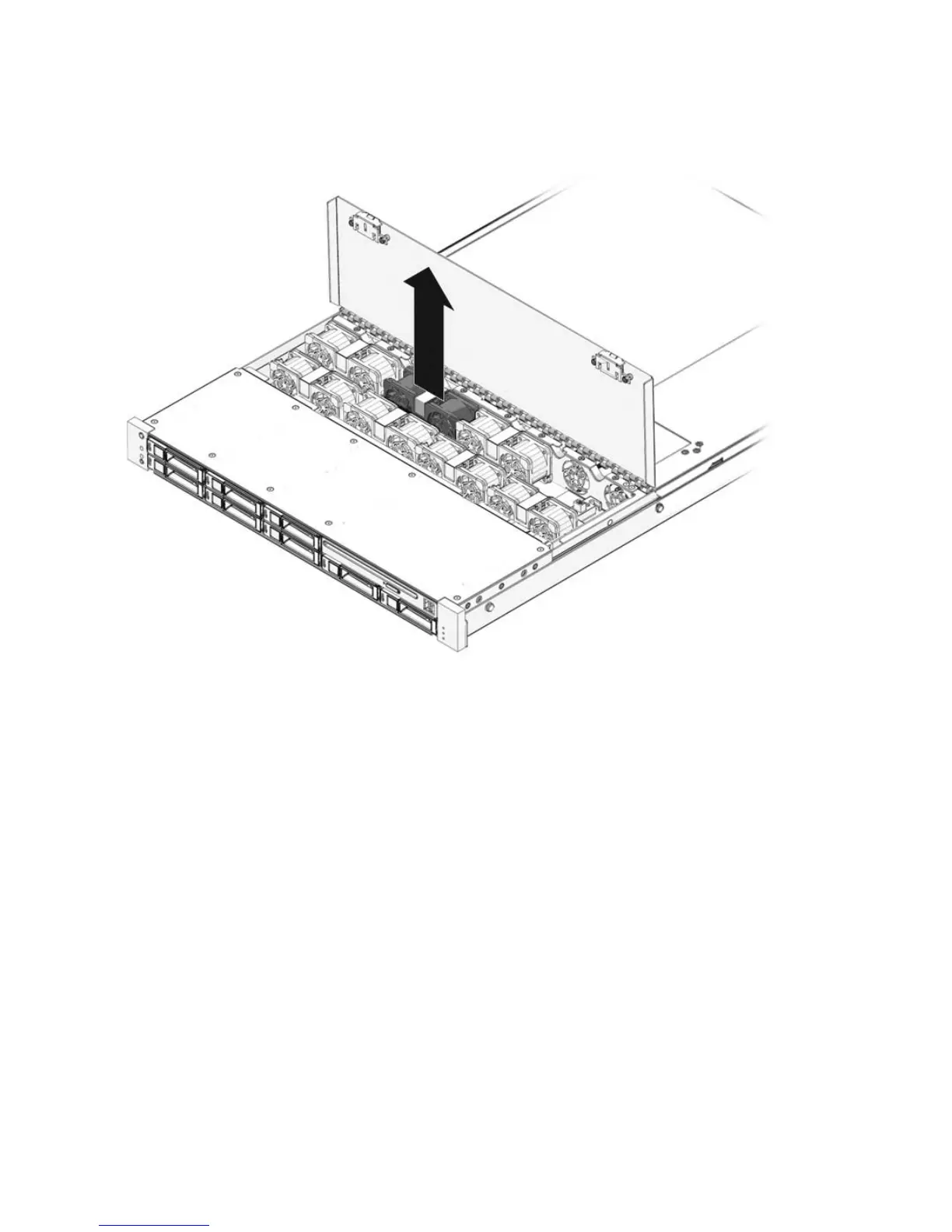

FIGURE 3-6 Removing a Fan Module.
3.3.5 Installing a Fan Module
1. With the top cover door open, install the replacement fan module into the server
(
FIGURE 3-7).
The fan modules are keyed to ensure that they are installed in the correct
orientation.
