3-18 Sun Fire X4150 Server Service Manual • November 2009

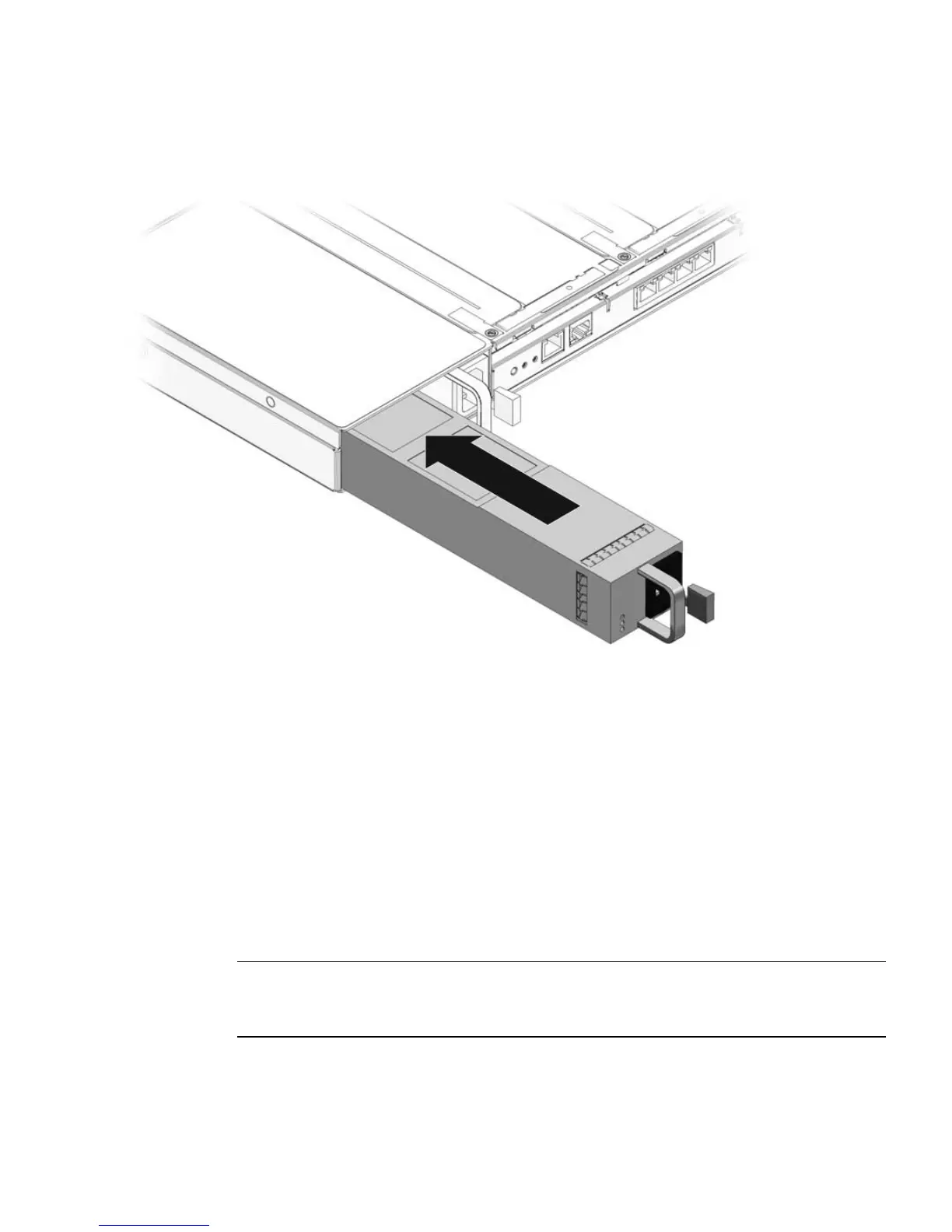

FIGURE 3-11 Installing a Power Supply
4. Reconnect the power cord (or cords) to the power supply (or supplies).
Verify that the AC Present LED is lit.
5. Close the CMA, inserting the end of the CMA into the rear left rail bracket
(
FIGURE 3-9).
6. Verify that the following LEDs are not lit:
■ Failure LED on the replaced power supply
■ Service Required LED
■ Front Service Required LED
■ Rear Service Required LED
Note – See Section 1.3, “Sun Fire X4150 Server Front Panel Features” on page 1-6 and
Section 1.4, “Sun Fire X4150 Server Rear Panel Features” on page 1-7 for more
information about identifying and interpreting system LEDs.
