Fuel System: 1G-9
Schematic and Routing Diagram

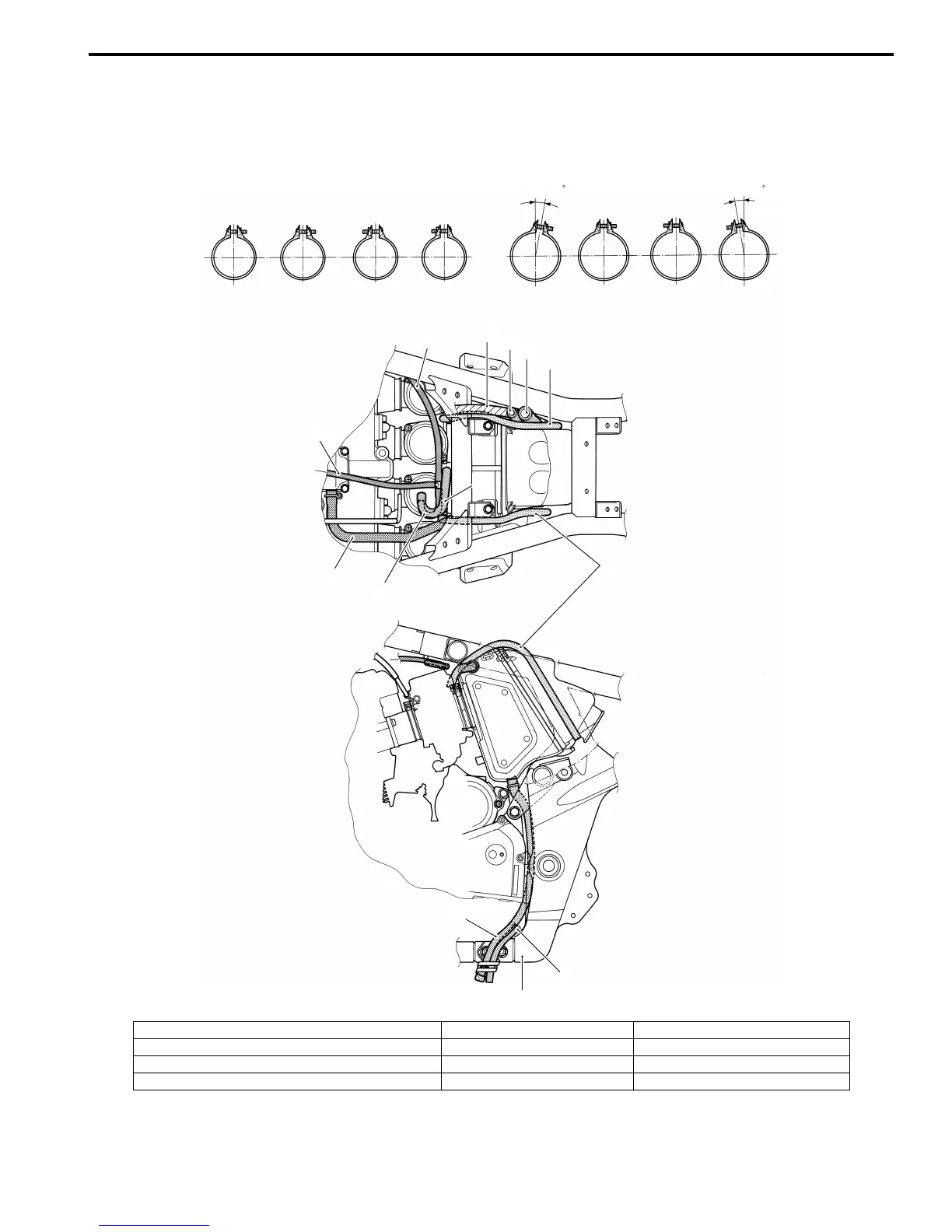

Carburetor Hose Routing Diagram
B649G11702002
8
9
12
2
4
7
1
3
5
8
11
10
5 - 155 - 15
Air cleaner sideEngine side
RH LH RHLH
6
I649G1170009-02
1. Fuel hose (Connected to the carburetor and fuel valve) 5. Air vent hose (RH) 9. Air cleaner box drain hose
2. Vacuum hose (To fuel valve) 6. Air vent hose (LH) 10. Fuel tank breather hose
3. Vacuum hose (To #4 carburetor) 7. PCV hose 11. Wiring harness
4. Vacuum hose (To PAIR valve) 8. Fuel tank drain hose 12. Inside wall of the right frame
