Suzuki 2005 GSF1200 User Manual

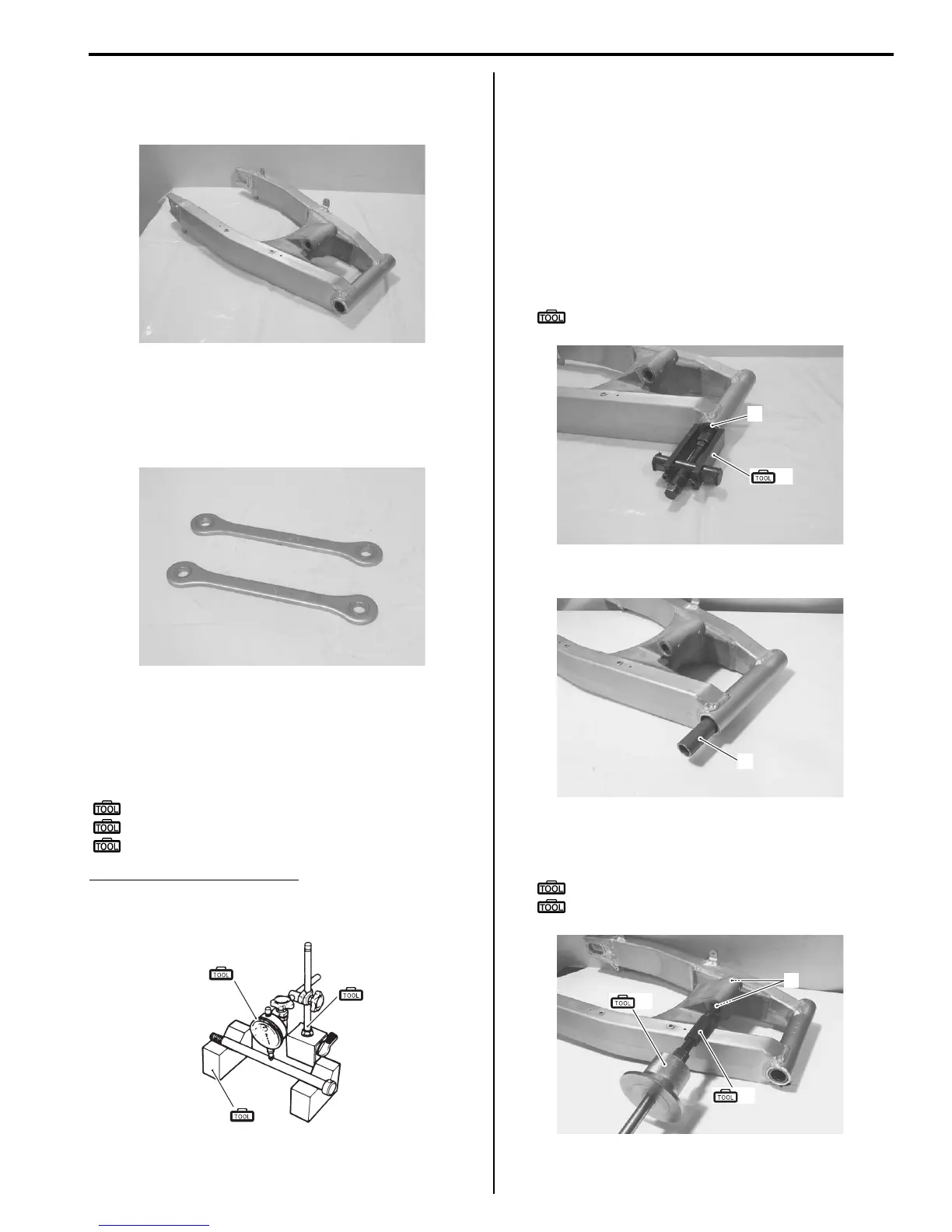

Rear Suspension: 2C-10
Swingarm
Inspect the swingarm for damage. If any defect is found,
replace the swingarm with a new one.
Cushion Rod
Inspect the cushion rods for damage and bend. If any
defects are found, replace the cushion rods with new
ones.
Swingarm Pivot Shaft
Measure the swingarm pivot shaft runout using the dial
gauge. If the runout exceeds the service limit, replace
the pivot shaft.
Special tool
(A): 09900–20606 (Dial gauge (1/100 mm))
(B): 09900–20701 (Magnetic stand)
(C): 09900–21304 (V-block (100mm))
Swingarm pivot shaft runout
Service limit: 0.3 mm (0.01 in)
Swingarm Bearing Removal and Installation
B649G12306018
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation: in
Section 2D”.
2) Remove the swingarm. Refer to “Swingarm /
Cushion Rod Removal and Installation: ”.
3) Draw out the swingarm pivot bearings (1) using the
special tool.
Special tool
(A): 09921–20240 (Bearing remover set)
4) Remove the center spacer (2).
5) Remove the swingarm cushion rod bearings (3)
using the special tools.
Special tool
(A): 09923–73210 (Bearing remover)
(B): 09930–30102 (Sliding shaft)
I649G1230032-02
I649G1230033-01
(A)
(B)
(C)
I649G1230034-02
(A)
1
I649G1230035-03
2
I649G1230036-01
(B)
(A)
3
I649G1230037-03

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
