Maintenance and Lubrication: 0B-3
Lubrication Points
B649G10205002
Proper lubrication is important for smooth operation and long life of each working part of the motorcycle.

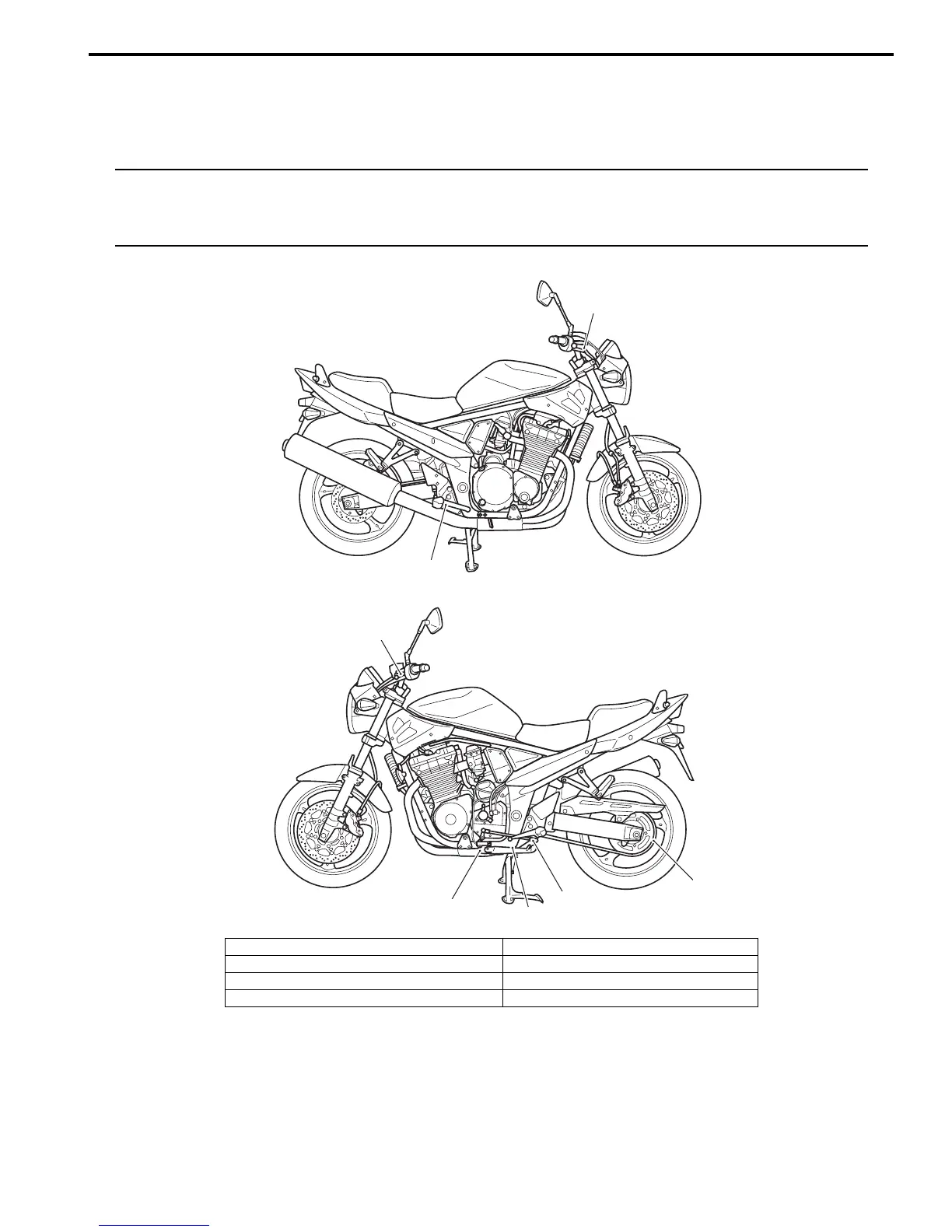

Major lubrication points are indicated as follows.
NOTE
• Before lubricating each part, clean off any rusty spots and wipe off any grease, oil, dirt or grime.
• Lubricate exposed parts which are subject to rust, with a rust preventative spray whenever the
motorcycle has been operated under wet or rainy conditions.
2
1
3
4
6
5
7
I649G1020001-03
1. Brake lever holder and throttle cables 5. Gearshift pivot and left footrest pivot
2. Brake pedal pivot and right footrest pivot 6. Center stand pivot and spring hook
3. Clutch lever holder 7. Drive chain
4. Side-stand pivot and spring hook
