Suzuki 2005 GSF1200 - Page 365

Clutch: 5C-3
GSF1200S
4
90
3
4
21
(a)
49
35
21
(b)
42
15
(a)
7
7
8
5
6
4
4
5
10
9
I649G1530002-04

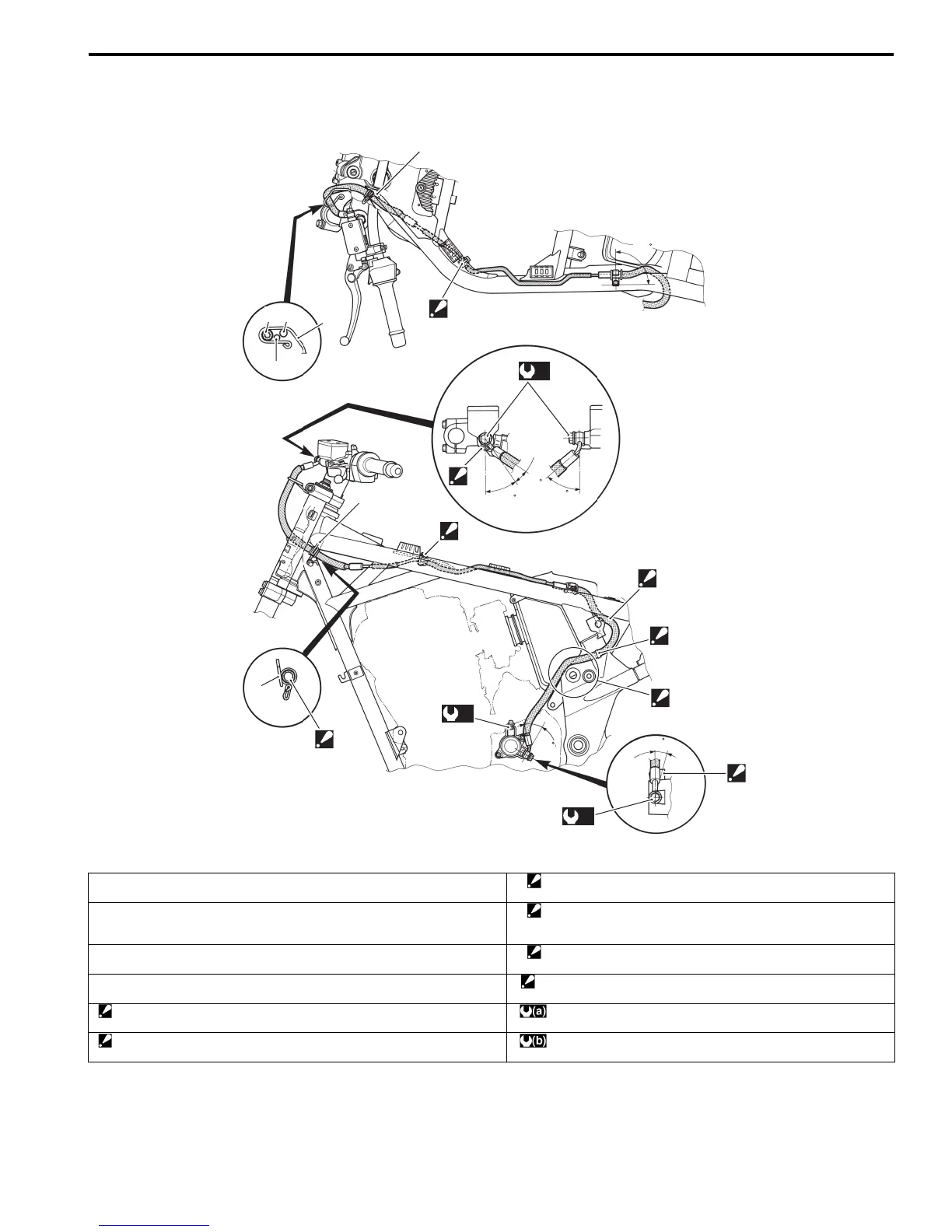

1. Clutch hose 7. Clutch hose clamp
: Insert the clutch hose clamp end to the hole of the frame fully.
2. Wire harness 8. Clutch hose
: Pass through the clutch hose between the frame and fuel tank rail.
Be careful not to contact the clutch hose and frame cover bracket.
3. Starter cable 9. Fixed clamp
: Align the white paint mark on the clutch hose to the fixed clamp.
4. Clutch hose guide 10. Clutch hose
: Pass the clutch hose through outside of the wire harness.
5. Stopper
: After the clutch hose union has contacted the stopper, tighten the union bolt.
: 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
6. Grommet
: Install the grommet of the clutch hose to the clutch hose guide properly.
:8 N⋅m (0.8 kgf-m, 6.0 lb-ft)
