Suzuki LS650 Savage User Manual

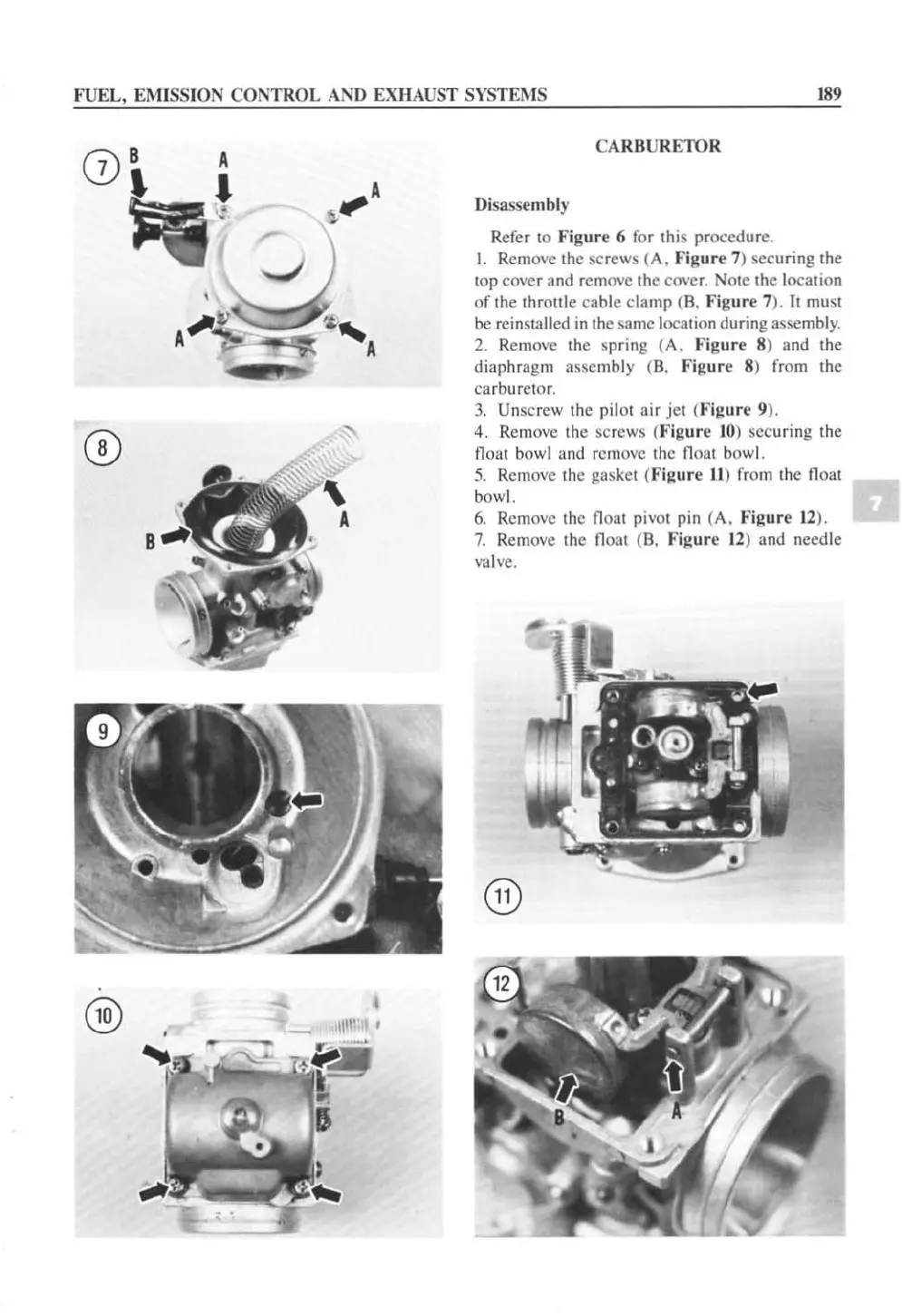

FUEL, EMISSION CONTROL AND EXHAUST SYSTEMS
18 9
CD
8
CARBURETOR
Disassembly
Refer
to Figure 6 fo r this procedure.
I. Re mo ve the sc rews (A. Fi gure 7) securing the
to p cover and remove the cover. Note the location
of the throttle cable clamp
(B. Figure 7). It mu st
be reins tall ed in th e s am e location during assembl y.
2. Rem ove the spring ( A. Figure 8) and the
diaphragm assembly
(8. Figure 8) from the
carburetor.
3. Unscrew the pil ot air je t (Figure 9).
4. Remove the screws (Figure 10) securing the
float bowl and remove the fl oat bowl.
5. Remove th e gasket (.' ig ure 11 ) from th e float
bowl.
6. Remove the float pivot pin (A. Fig ur e 12).
7. Remove the float (8 . • 'igure 12) and needle
valve.
®

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
