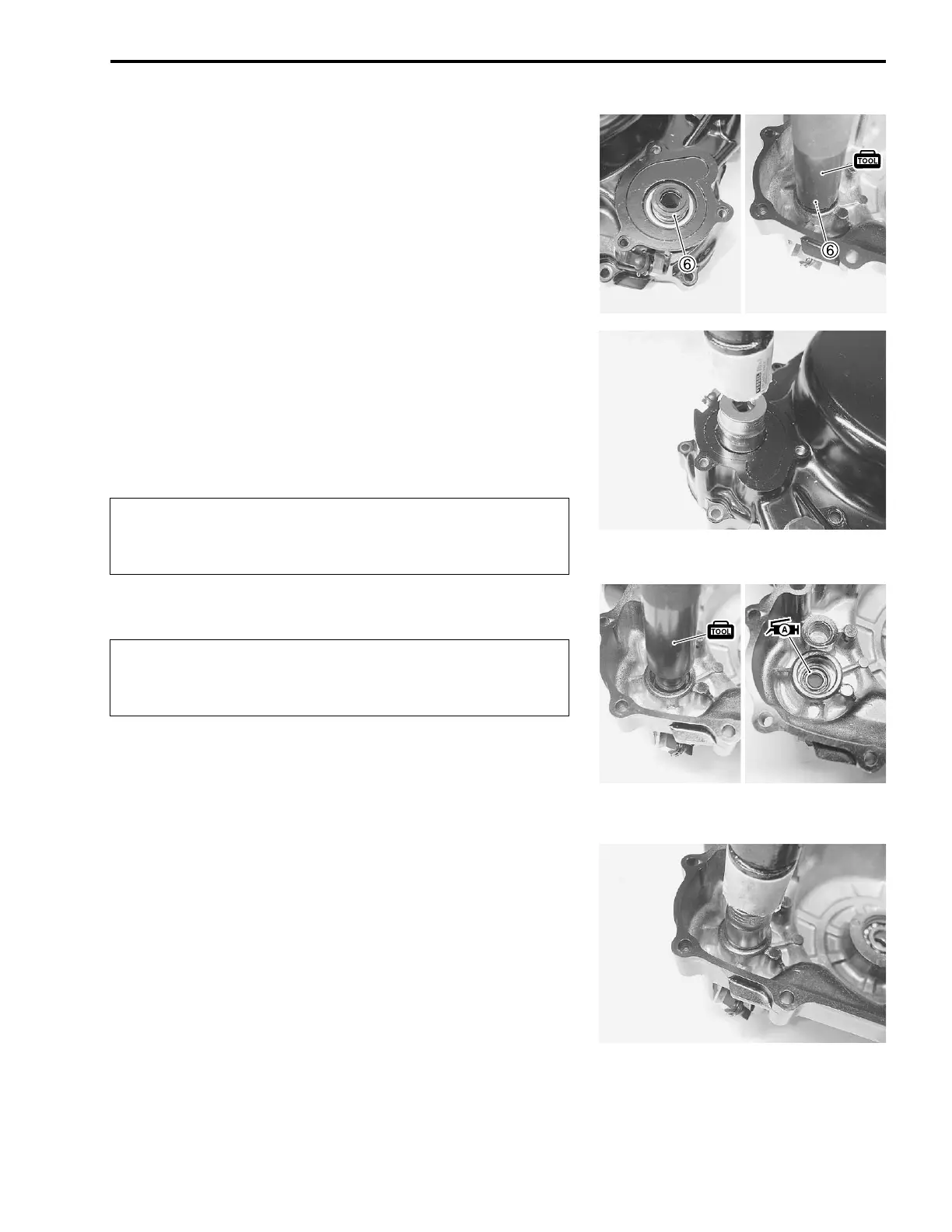

COOLING AND LUBRICATION SYSTEM 6-15
• Remove the mechanical seal
6 with the special tool.
& 09913-70210: Bearing installer set
REASSEMBLY AND INSTALLATION
Reassemble and remount the water pump in the reverse order
of removal and disassembly. Pay attention to the following
points:
• Install the mechanical seal by using the suitable size socket
wrench.
!
• Install the oil seal with the special tool.
!
• Apply grease to the oil seal.
& 09913-70210: Bearing installer set
+ 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Install the water pump shaft by using the suitable size socket
wrench.
• Install the new gasket. (#3-96)
* Replace the removed seal with a new one.
* Install the mechanical seal taking care about its
direction. (#6-17)
* Replace the removed seal with a new one.
* Install the oil seal taking care about its direction.
(#6-17)
