Suzuki LT-F500F 2002 - Removal; Inspection and Disassembly

CHASSIS 7-69

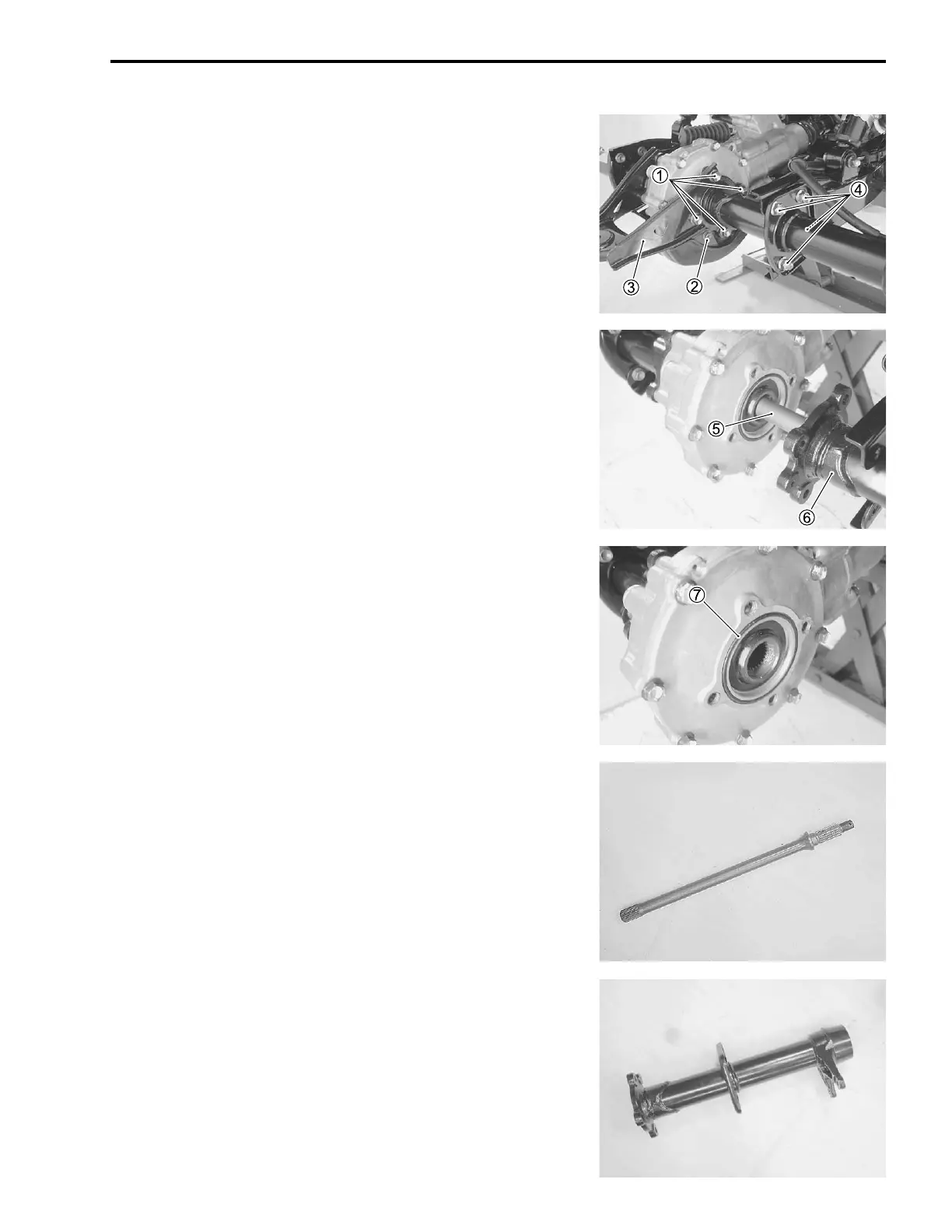

REMOVAL
• Place the vehicle on level ground.
• Remove the rear wheel. (!7-11)
• Remove the rear caliper. (!7-51)
• Remove the rear wheel hub. (!7-57)
• Loosen the rear axle housing bolts
1.
• Remove the rear drive gear case cover bolts
2.
• Remove the trailer towing
3.
• Remove the swingarm bracket bolts and nuts
4.
• Remove the rear axle
5 and rear axle housing 6.
• Remove the O-ring
7.
INSPECTION AND DISASSEMBLY
REAR AXLE SHAFT
Inspect the rear axle shaft for distortion or damages. If any dam-
ages are found, replace the rear axle shaft with a new one.
REAR AXLE HOUSING
Inspect the rear axle housing for distortion or damages. If any
damages are found, replace the rear axle housing with a new
one.
