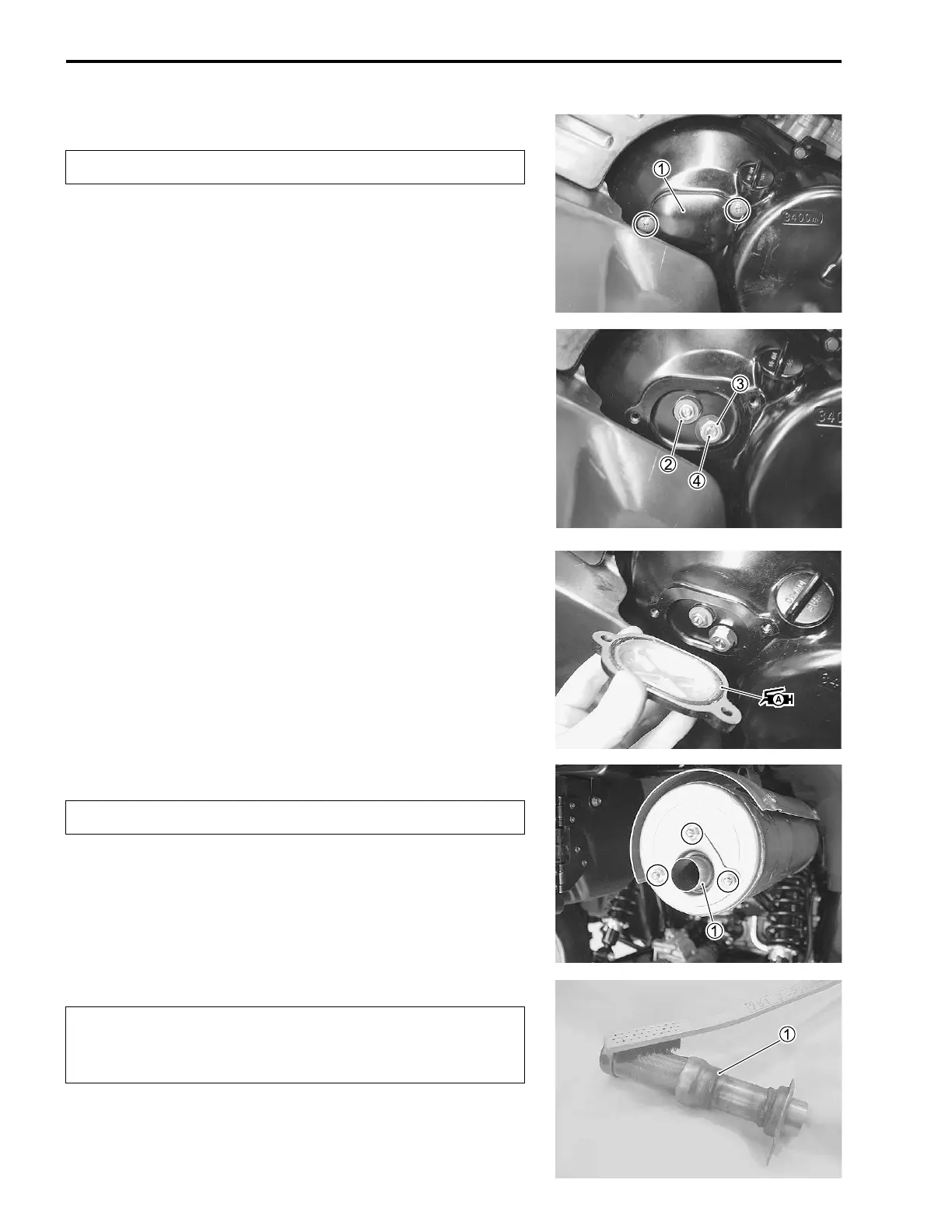

2-14 PERIODIC MAINTENANCE
CLUTCH
• Remove the clutch adjuster cap
1.
• Loosen the locknuts
2 and
3.
• Rotate the adjusting screw
4 on the right side counterclock-
wise until it stops.
• Tighten the locknut
2 on the left side.
# Locknut
2: 8 N·m (0.8 kgf-m, 5.7 lb-ft)
• Rotate the adjusting screw
4 on the right side 1/4 – 2/4 turn
clockwise.
• Tighten the locknut
3 by holding the adjuster.
# Locknut
3: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
• Apply grease to the O-ring and install the O-ring clutch
adjuster cap.
• Install the clutch adjuster cap.
& 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
SPARK ARRESTER
• Extract the spark arrester pipe
1 from the muffler.
• Clean the spark arrester pipe
1 by brush.
• Reinstall the spark arrester pipe
1.
'
Inspect every 2 000 km (1 200 miles, 6 months).
Clean every 2 000 km (1 200 miles, 6 months).
Only clean the spark arrester in an open area away
from combustible materials. Exhausted hot carbon
particles can start a fire.
