CHASSIS 7-79
CABLES
REMOVAL AND INSTALLATION

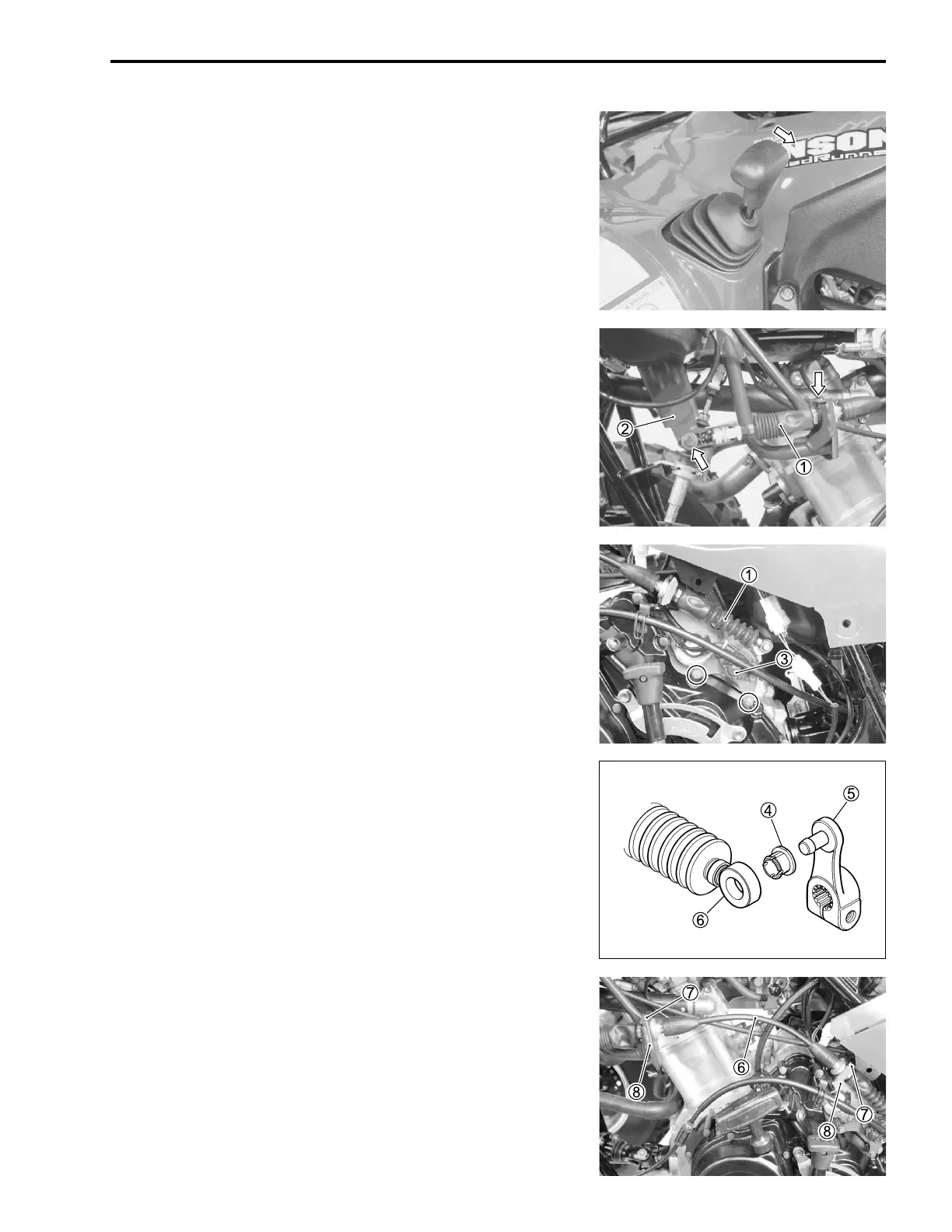

REVERSE GEAR CABLE
Before removing the reverse gear cable, keep the gearshift lever
in the “R” position.
• Remove the tank covers, left inner fender and left mud guard.
(!7-5 to -8)
• Disconnect the reverse gear cable
1 from the reverse arm
2
by removing the E-ring and clip.
• Remove the reverse switch
3 and clip.
• Remove the reverse gear cable
1 with the reverse gear arm.
• Release the cable adjuster lock. (!7-83)
• Install the busing
4 to the reverse gear arm
5.
• Connect the reverse gear arm
5 to the reverse gear cable
6.
• Install the reverse gear cable
6 and clips
7 to the stoppers
8.
