7-22 CHASSIS

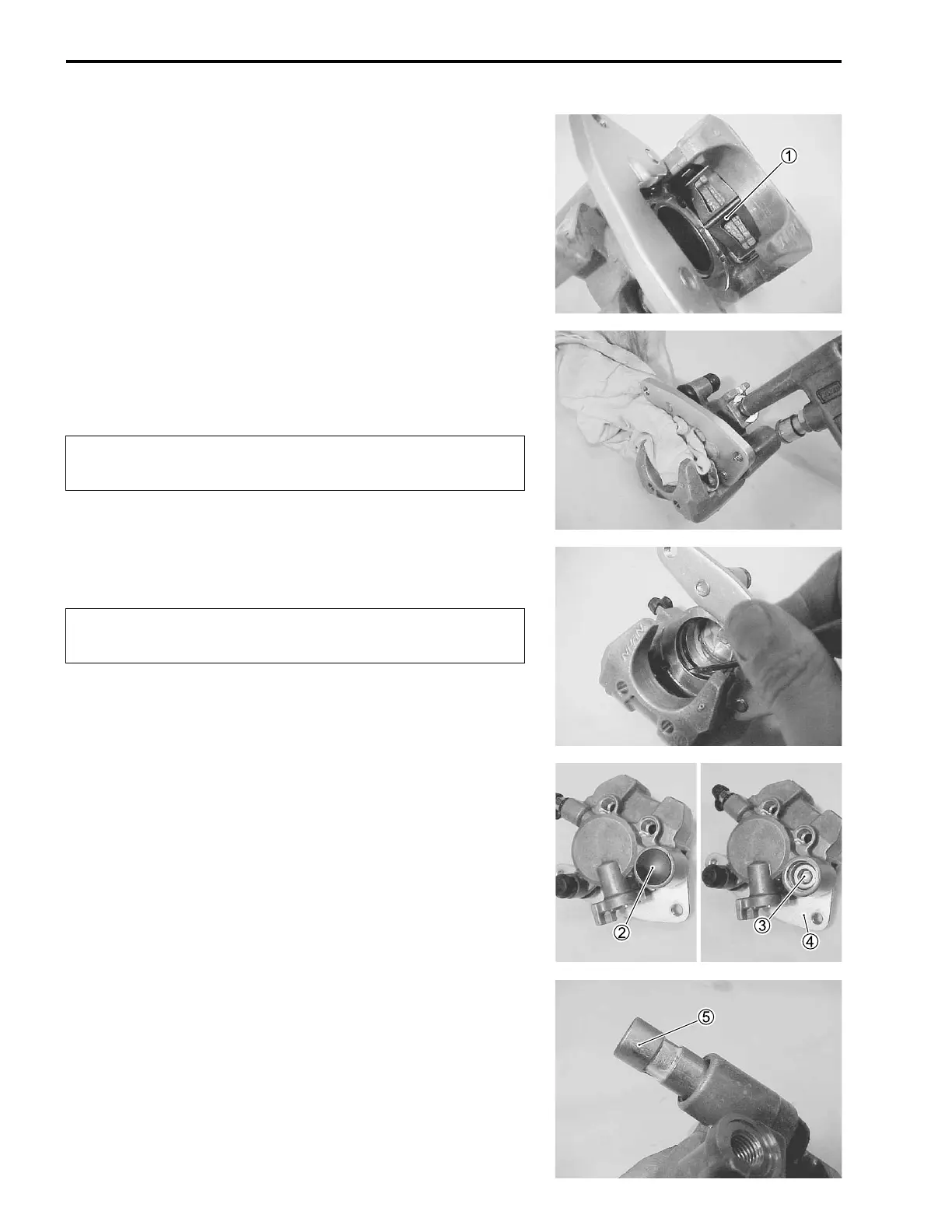

• Remove the spring
1.
• Place a rag over the brake caliper pistons to prevent them
from popping out and then force out the pistons using com-
pressed air.
$
• Remove the dust seals and piston seals.
$
• Remove the cap
2 and loosen the brake caliper holder pin
3.
• Remove the brake caliper holder
4.
• Remove the brake caliper holder pin
5.
Do not use high pressure air to prevent brake caliper
piston damage.
Do not reuse the dust seal and piston seal to prevent
fluid leakage.
