CHASSIS 7-25

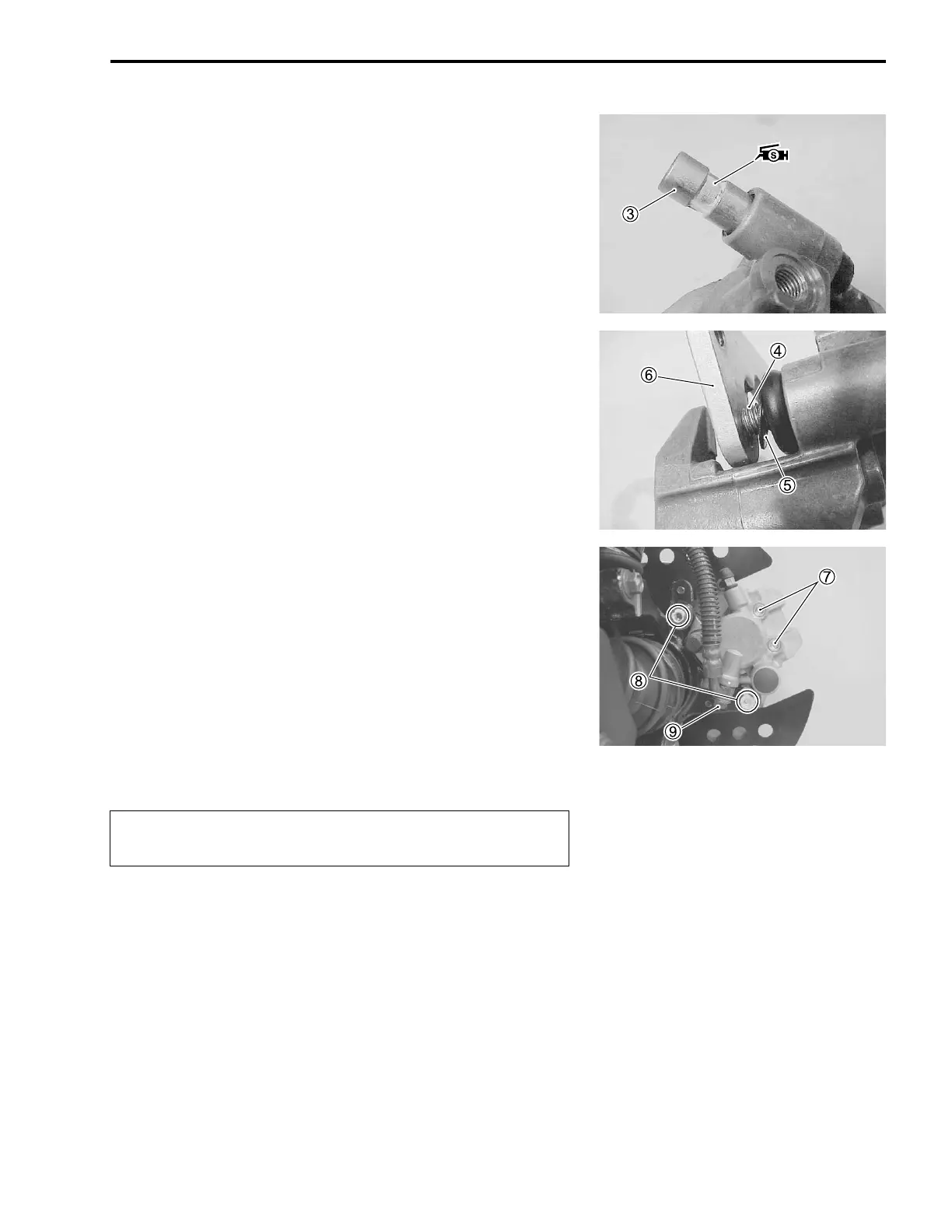

• Apply SUZUKI SILICON GREASE to the pin
3.
( 99000-25100: SUZUKI SILICON GREASE
• Install the pin
4, washer
5 and caliper holder
6 to the cali-
per.
• Apply THREAD LOCK SUPER “1360” to the pin
4.
) 99000-32130: THREAD LOCK SUPER “1360”
• Tighten the pin
4 to the specified torque.
# Caliper holder pin: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
• Install the pads to the caliper.
• Tighten the brake pad mounting pins
7, brake caliper mount-
ing bolts
8, and brake hose union bolt
9 to the specified
torque.
# Brake pad mounting pin: 18 N·m (1.8 kgf-m, 13.0 lb-ft)
Brake caliper mounting bolt:
26 N·m (2.6 kgf-m, 19.0 lb-ft)
Brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
NOTE:
Before remounting the brake caliper, push the brake caliper pis-
tons all the way into the caliper.
$
Bleed air from the system after reassembling the
brake caliper. (!2-17)
