SVANTEK 974 User Manual
The user can easily get into the Profiles
screen during the measurement performance
from the result view. It is necessary to enter
some profile field (for example, P(1)) with the
use of ▲ / ▼ or ◄ / ► push-buttons and press
<ENTER>.
<ENT>
5.4 Setting up the data logging – Logging
Main measurement results or summary results (RMS, Peak, P–P, MTVV) are measured and saved in the file
with the step defined by Integration Period parameter as many times as defined by the Repetition Cycles
parameter.
The Logger function proposes additional registration of some parameters with different step defined by the
Logger Step parameter. Therefore, in fact it can be possible to save to sequences of measured results – one
for summary results and another for logger results.
When the Logger is switched on up to 12 logger results can be saved simultaneously from three independent
profiles of the instrument (Peak / P-P / Max / RMS) with time step down to 2ms. The recording of logger results
to the file is stopped after the period, which is equal to Integration Period multiplied by Repetition Cycles or
after pressing the <Stop> push-button or after stopping the measurements remotely.
The summary results are saved in the same file that the logger results. The whole block of the summary results
is added to the file in the end of every measurement cycle.

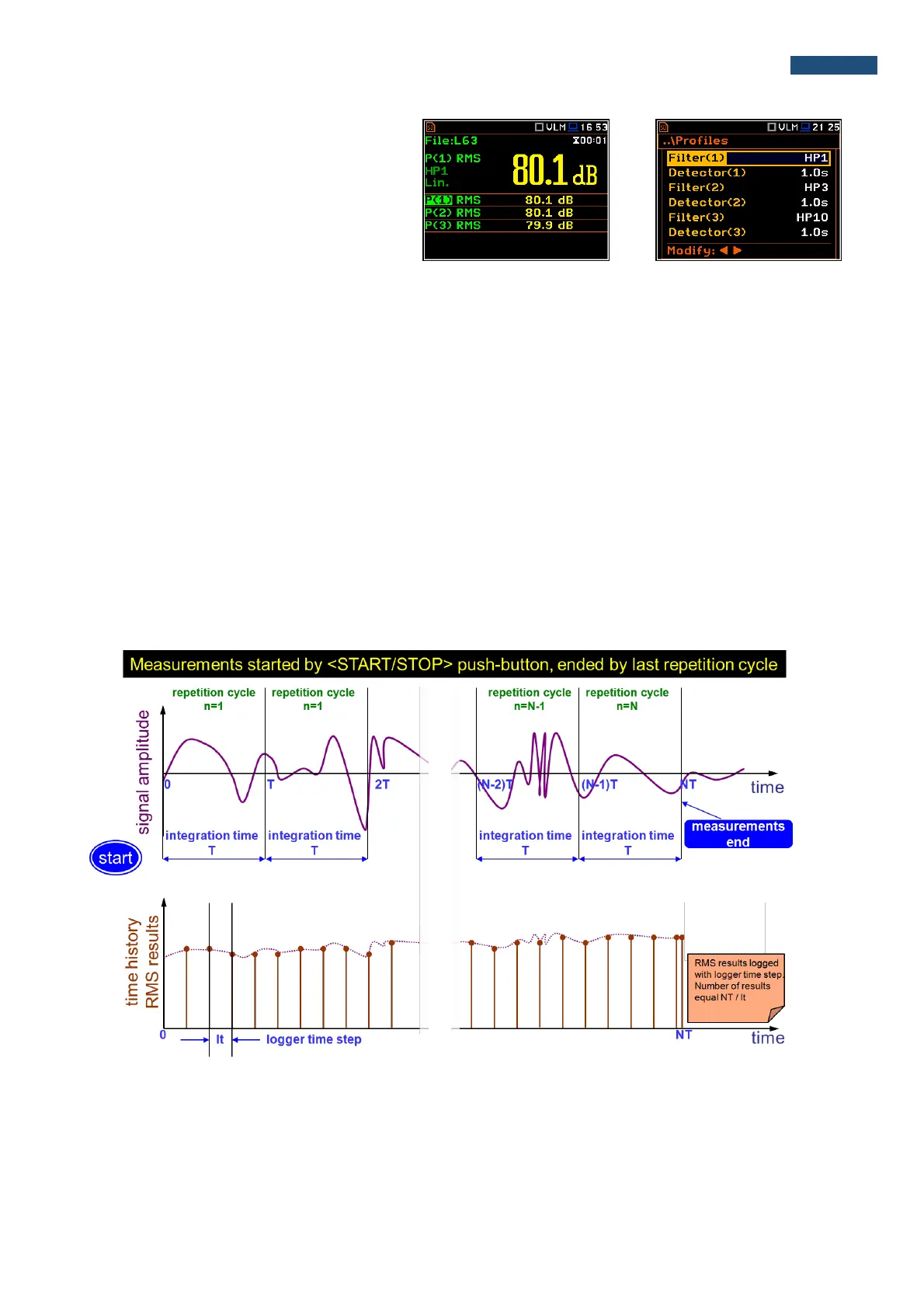

The figure below illustrates described principles of saving results of the measurement.
Relations between Integration Period and Logger Step
