The edited name is accepted and saved after
pressing the <ENTER> push-button. The
special warning is displayed in case a file with
the edited name already exists in the
memory. The instrument waits then for a
reaction of the user (any push-button should
be pressed except <Shift> or <Alt>).

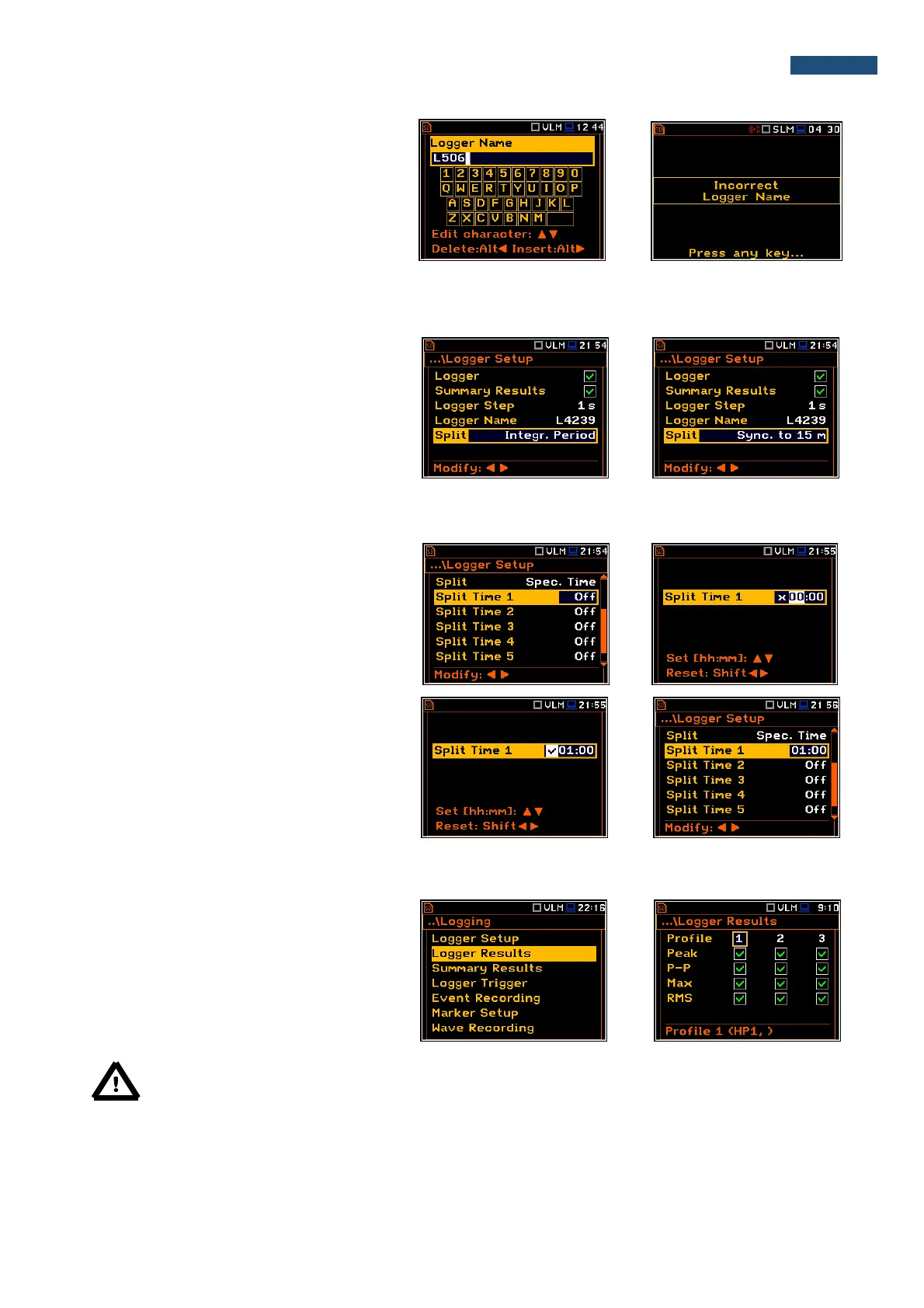

The Split position enables the user to split the logger registration data into separate files. If Split parameter is
Off the registration of time history data will be continuously performed in one logger file with the name defined
in the Logger Name position.
In other cases, the registration is performed
in separate files and the registration in the
new file will start: after integration period time
(Integr. Period), or every quarter of the RTC
(Sync. to 15m), or every half an hour of
the RTC (Sync. to 30m), or every hour of
the RTC (Sync. to 1h), or at specified by
the user times (Spec. Time).
Every time when the split time is achieved the logger file is closed and new file with the increased by one number
is opened for subsequent measurement data.
If Spec. Time is selected 6 additional lines
appear in the end of the Logger Setup list.
Opening each line the user can define the
time of the day when the split will take place.
The special screen with time edition is
opened after pressing the ► push-button.
In the time edition line the user may define
hour and minute of the split operation and
also switch on () or off () the current split.
After pressing <ENTER> the Split Time list
will show the active times of the day when the
logger will be split.
5.4.2 Selection of results for logging – Logger Results
The Logger Results list enables the user to
activate the results for three independent
user defined profiles (Peak, P-P, Max and
RMS). Activation / deactivation can be done
by means of the ◄ or ► push-buttons
pressed together with <Alt>. The position is
changed by means of the ◄ or ► and ▲ or
▼ push-buttons.
Note: When Logger is switched off or there are no results for logging, the logger plot cannot be
activated in Display Modes and accordingly doesn’t appear on the display.
