TechnipFMC Smith Meter AccuLoad III User Manual

Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 15

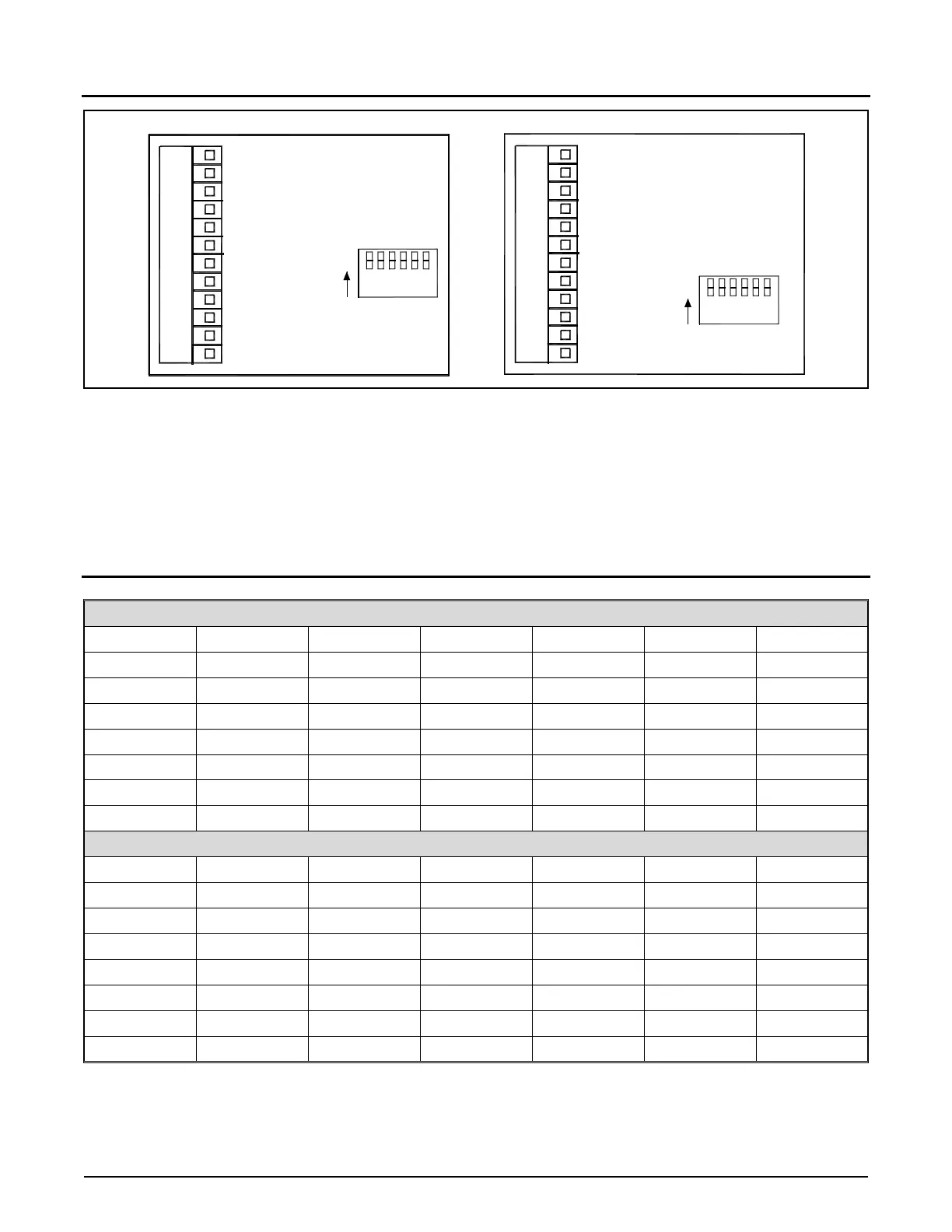

Figure 9. PIB Boards
Note: AccuLoad III-S hardware has one PIB board.
PIB Update
Refer to MN06113
Note: If AccuLoad III Rev. 10.12 or higher is being used and the reverse flow is implemented; PIB board Rev. 3 or above must be used.
Pulse Inputs
6-Product Meters (AccuLoad III-Q Hardware)
Input #1 Input #2 Input #3 Input #4 Input #5 Input #6
Single Pulse
Meter #1A Meter #2A Meter # 3A Injector/Dens. Injector/Dens. Injector/Dens.
Dual Pulse
Meter #1A Meter #1B Meter # 3A Meter #2A Meter #2B Meter # 3B
Dual/Integrity
N/A N/A N/A N/A N/A N/A
Input #7 Input #8 Input #9 Input #10 Input #11 Input #12
Single Pulse
Meter #4A Meter #5A Meter #6A Injector/Dens. Injector/Dens. Injector/Dens.
Dual Pulse
Meter #4A Meter #4B Meter #6A Meter #5A Meter #5B Meter #6B
Dual/Integrity
N/A N/A N/A N/A N/A N/A
5-Product Meters (AccuLoad III-Q Hardware)
Input #1 Input #2 Input #3 Input #4 Input #5 Input #6
Single Pulse
Meter #1A Meter #2A Meter # 3A Injector/Dens. Injector/Dens. Injector/Dens.
Dual Pulse
Meter #1A Meter #1B Meter # 3A Meter #2A Meter #2B Meter # 3B
Dual/Integrity
N/A N/A N/A N/A N/A N/A
Input #7 Input #8 Input #9 Input #10 Input #11 Input #12
Single Pulse
Meter #4A Meter #5A Injector/Dens. Injector/Dens. Injector/Dens. Injector/Dens.
Dual Pulse
Meter #4A Meter #4B Injector/Dens. Meter #5A Meter #5B Injector/Dens.
Dual/Integrity
N/A N/A N/A N/A N/A N/A
EAAI PIB
+
-
+
-
+
-
+
-
-
+
-
+
Pulse In #1
Pulse In #2
Pulse In #4
Pulse In #3
Pulse In #6
Pulse In #5
3
12
11
7
10
9
8
5
6
4
1
2
PT1
Board
OFF = X2
On = X1
2 6543
S1
1
8
Pulse In #10
-
Pulse In #11
Pulse In #12
-
+
+
-
12
11
10
9
Pulse In #9
Pulse In #8
Pulse In #7
BSE PIB
ON
3
+
+
+
-
-
5
7
6
4
-
+
1
2
PT1
2
On = X1
OFF = X2
S1
5 63 4
ON
1
Board
