TechnipFMC Smith Meter AccuLoad III User Manual

Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 28

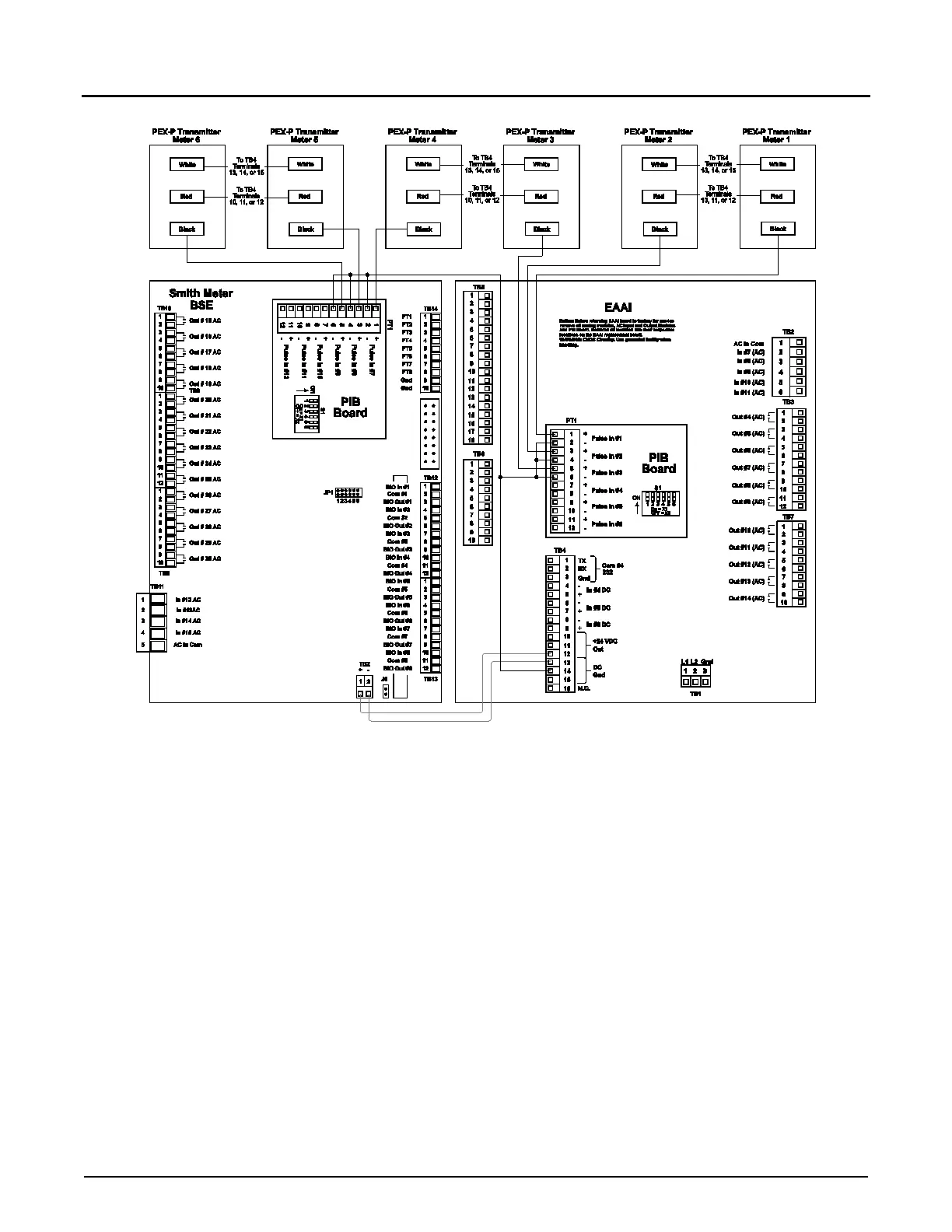

Figure 16. Wiring Diagram, PEX-P Transmitter Single Pulse
Note: Wiring between transmitter and Accuload should be done with a shielded cable per each transmitter. If selected cable utilizes
twisted pairs, do not run more than one signal in a twisted pair.
Caution: For clarity, shields not shown. Connect shields to terminals 3, 13, 14, or 15 of Terminal Block 4.
PEXP Wire Codes:
Black: Signal
Red: Input Power
White: Common
