TechnipFMC Smith Meter AccuLoad III User Manual

Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 47

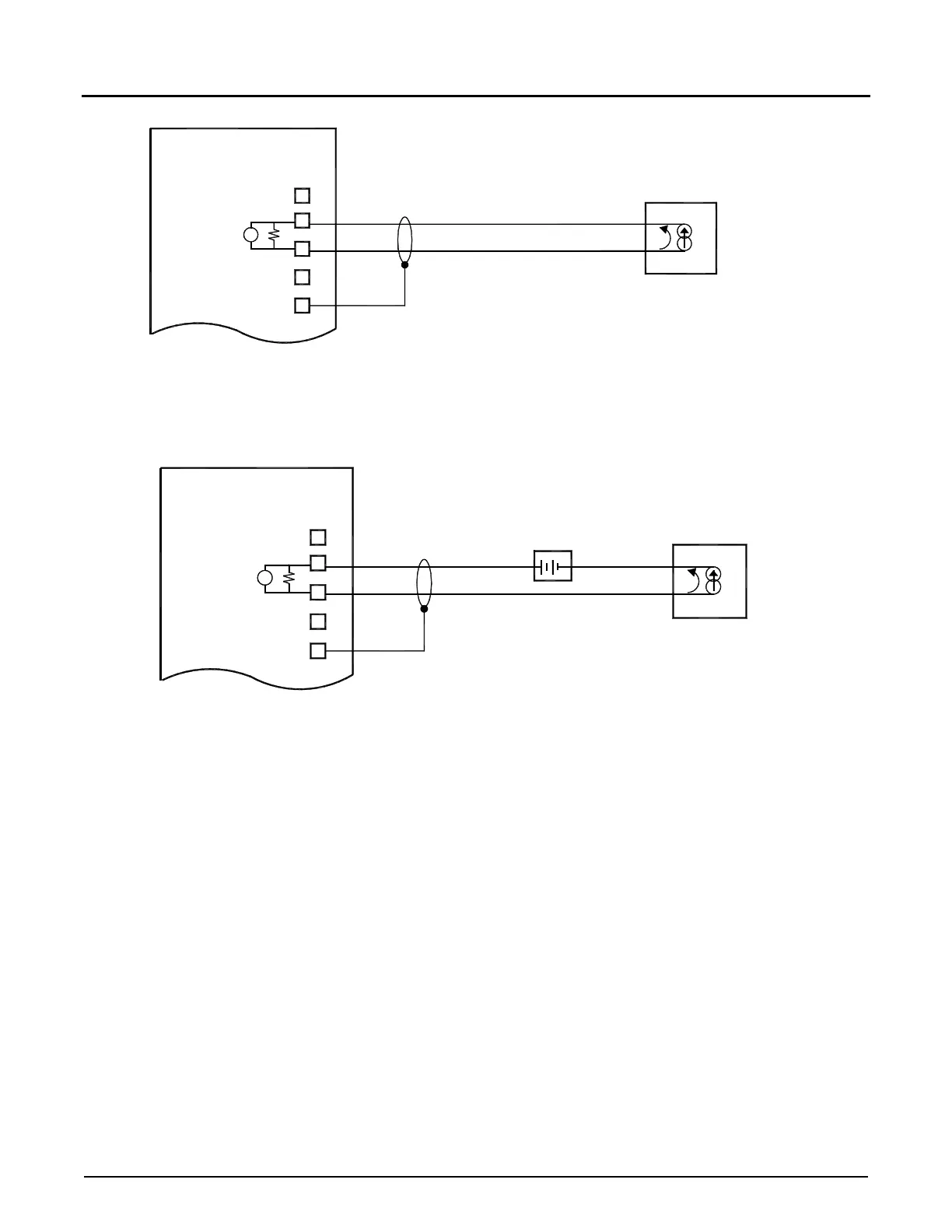

Figure 34. 4-20mA Inputs (Active)
Figure 35. 4-20mA Inputs (Passive)
The 4-20mA inputs are isolated from the processor and main power and can be programmed for the function required
by the application. The analog inputs are also scaleable through the I/O Configuration Menu of the unit. The inputs
should be wired with shielded twisted pairs of wires of 18 to 24 gauge.
RTD +
SIG X +
SIG X -
RTD -
Ground (TB4)
AccuLoad III - EAAI
4-20mA
Transmitting Device
Vin
GND
Terminal Block TB5
External
Power
RTD +
SIG X +
SIG X -
RTD -
Ground (TB4)
AccuLoad III - EAAI
4-20mA
Transmitting Device
Vin
GND
Terminal Block TB5
