TechnipFMC Smith Meter AccuLoad III User Manual

Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 52
Digital Outputs
The AccuLoad III is capable of providing eleven DC digital outputs and twenty-seven AC digital outputs (standard).
The outputs can be programmed as to function through the configuration directory. Eight of the DC digital outputs
are bi-state and can be used as either inputs or outputs depending on how they are programmed and wired. (See
Tables 9 and 10 for digital outputs terminal connections. For optional AICB outputs, see Table 19.)

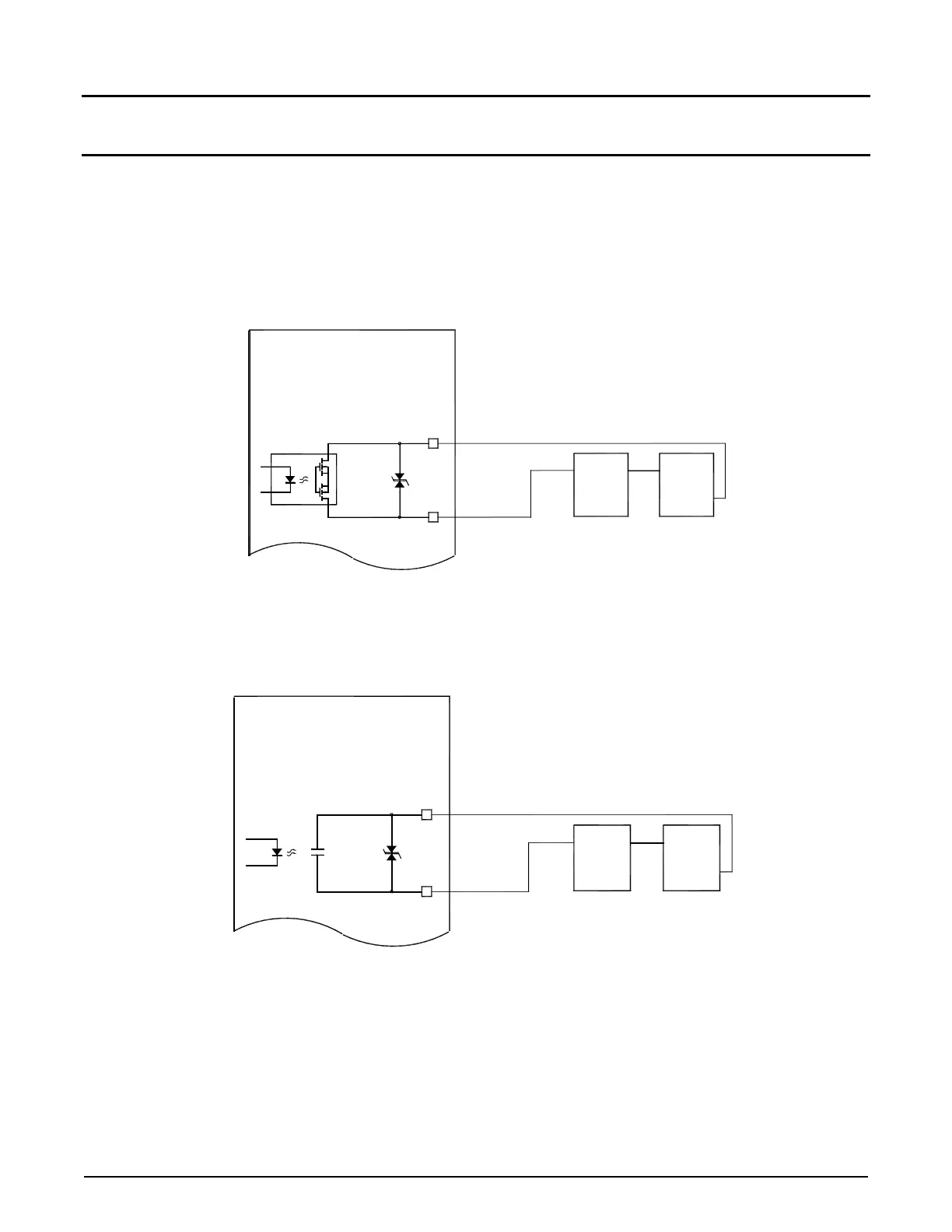

Figure 41. DC Outputs
Figure 42. AC Outputs
Out X-
Out X+
AccuLoad III KDC
DC Power
SupplyDevice
V+
V-
Receiving
Alarm,
Valve,
Etc.
Terminal Block TB5
Out X-
Out X+
AccuLoad III - EAAI
AC Power
SupplyDevice
V+
V-
Receiving
Alarm,
Valve,
Etc.
Terminal Blocks TB3 & TB7
