Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 32

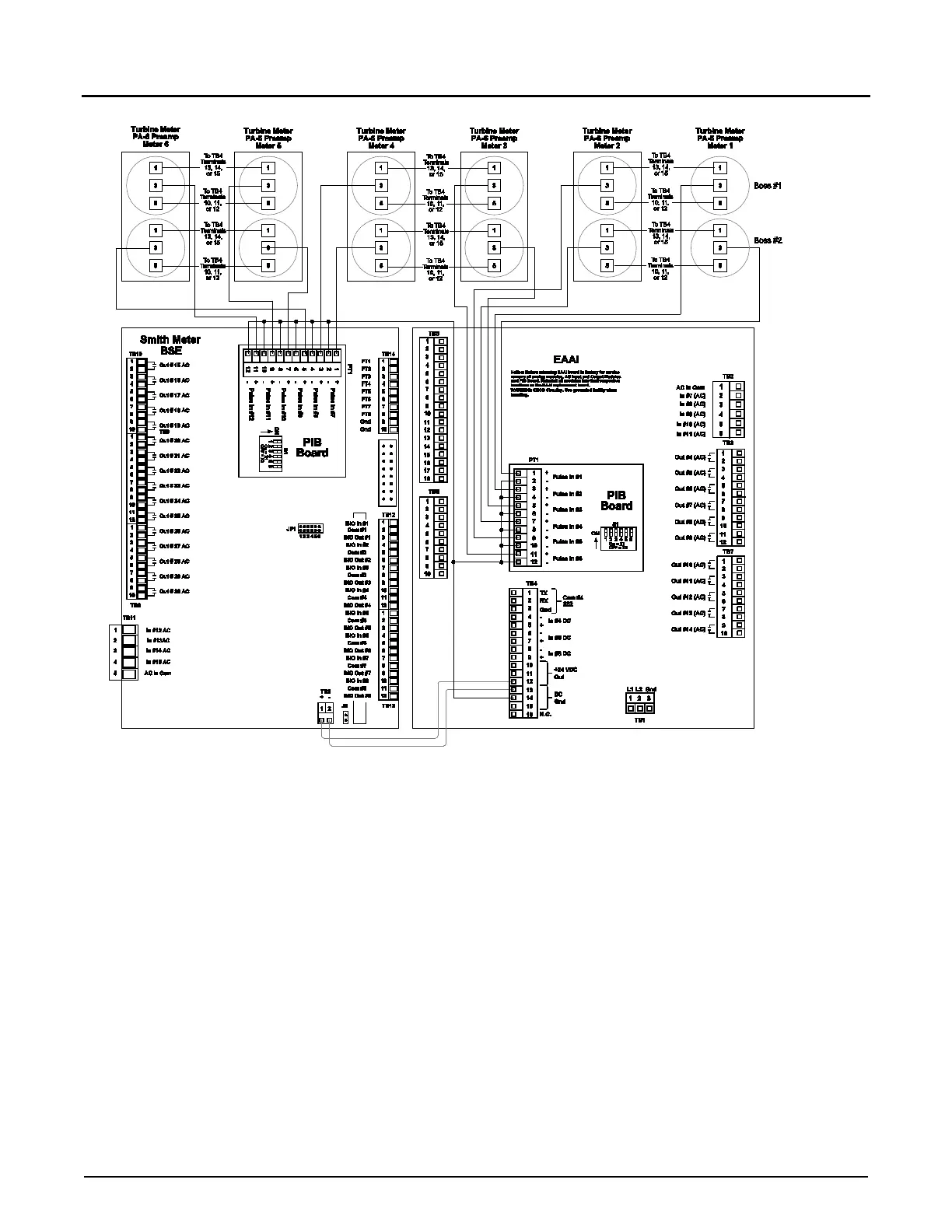

Figure 20. Wiring Diagram, Dual Pulse Turbine Meters with PA-6 Preamps
Note: Wiring between transmitter and Accuload should be done with a shielded cable per each transmitter. If selected able utilizes twisted
pairs, do not run more than one signal in a twisted pair.
Caution: For clarity, shields not shown. Connect shields to terminals 3, 13, 14, or 15 of Terminal Block 4.
PA-6 Terminal Connections (Boss #2)
1: Common
3: Signal A Output
5: Input Power
PA-6 Terminal Connections (Boss #1)
1: Common
3: Signal B Output
5: Input Power
