Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 24

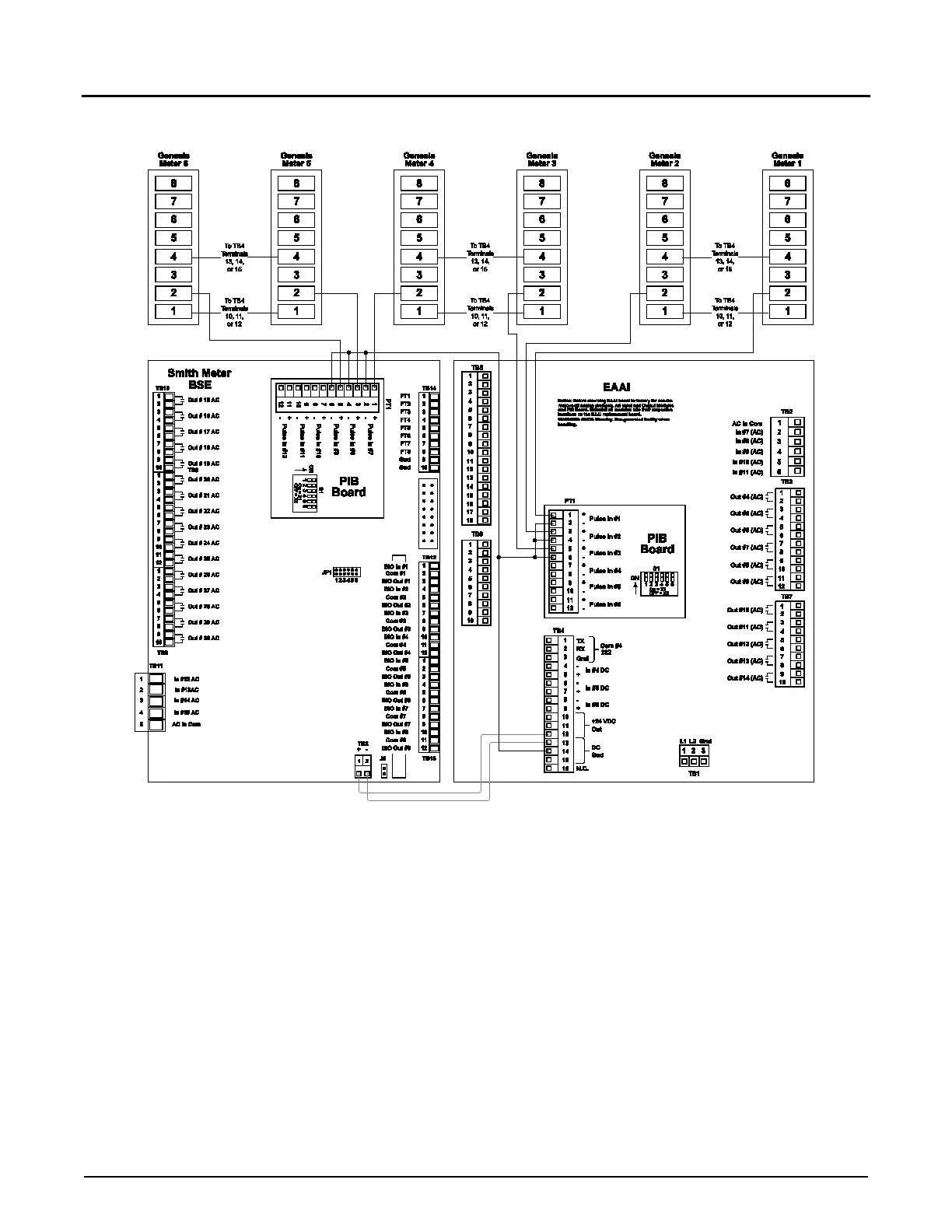

Figure 12. Wiring Diagram, Genesis Meter Single Pulse
Note: Wiring between transmitter and Accuload should be done with a shielded cable per each transmitter. If selected cable utilizes
twisted pairs, do not run more than one signal in a twisted pair.
Caution: For clarity, shields not shown. Connect shields to terminals 3, 13, 14, or 15 of Terminal Block 4.
Genesis Terminal Connections:
1: Input Power
2: Signal A Output
3: Signal B Output
4: Electronics Ground
5: Not used
6: Not used
7: Not used
8: Not used
