Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 49

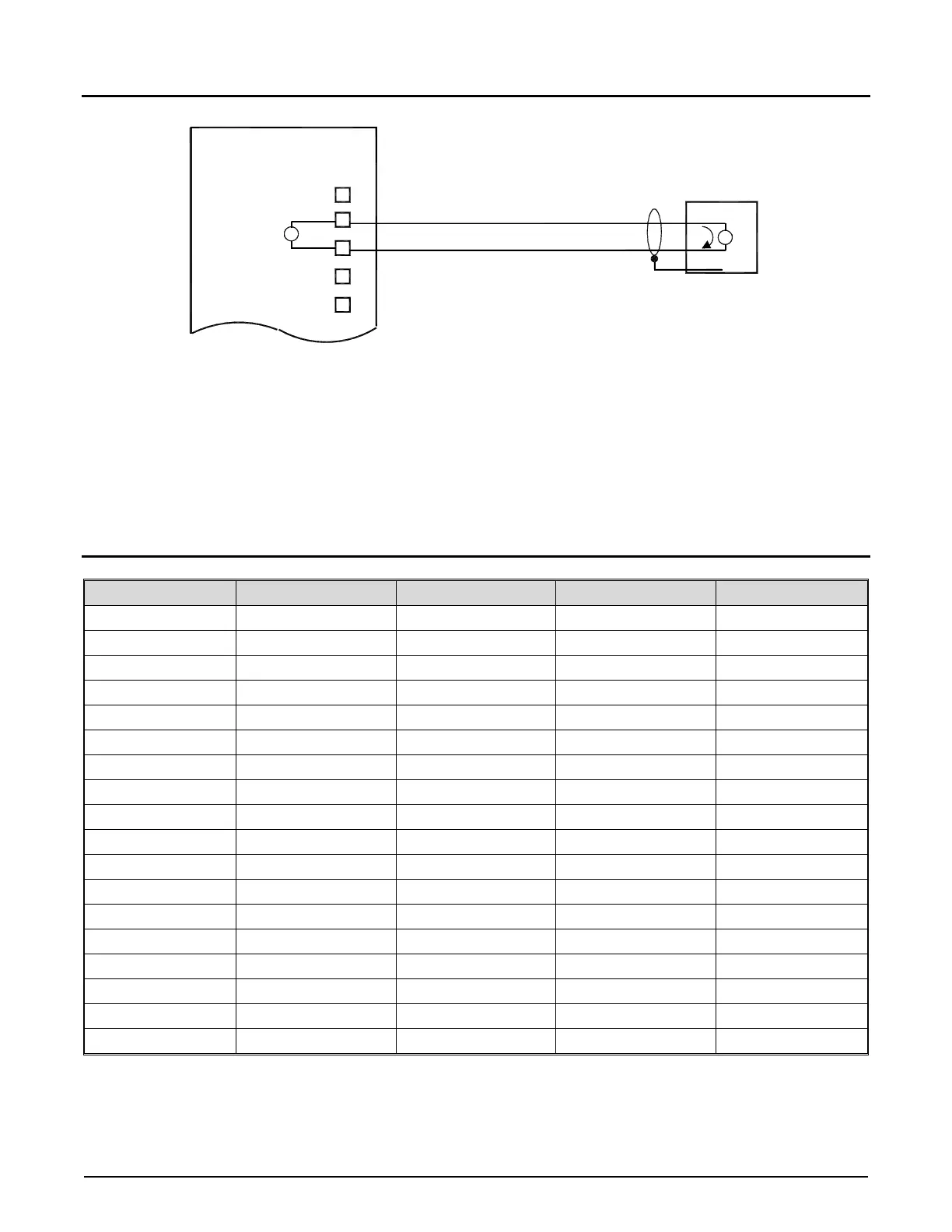

Figure 38. 1-5 Vdc Output
The 1-5 Vdc outputs are isolated from the processor and main power and can be programmed for the function
required by the application. The outputs are also scaleable through the I/O Configuration Menu of the unit. The
outputs should be wired with shielded twisted pairs of wires of 18 to 20 gauge.
Wiring Terminals, 4-20mA and 1-5 Vdc Inputs/Outputs
Module Number Connection Terminal Number Board Terminal Block
AM #1 - 3 EAAI TB5
AM #1 Shield 3, 13, 14, or 15 EAAI TB4
AM #2 - 7 EAAI TB5
AM #2 Shield 3, 13, 14, or 15 EAAI TB4
AM #3 + 10 EAAI TB5
AM #3 - 11 EAAI TB5
AM #3 Shield 3, 13, 14, or 15 EAAI TB4
AM #4 - 14 EAAI TB5
AM #4 Shield 3, 13, 14, or 15 EAAI TB4
AM #5 - 16 EAAI TB5
AM #5 Shield 3, 13, 14, or 15 EAAI TB4
AM #6 + 17 EAAI TB5
AM #6 - 18 EAAI TB5
AM #6 Shield 3, 13, 14, or 15 EAAI TB4
Table 9. Analog Terminal Connection
RTD +
SIG X +
SIG X -
RTD -
Ground (TB4)
AccuLoad III - EAAI
1-5 Vdc
Receiving Device
Vin
No Connection
No Connection
Vout
Terminal Block TB5
To Next Page
