Section IV – Diagrams

MN06135 Issue/Rev. 1.3 (6/17) 31

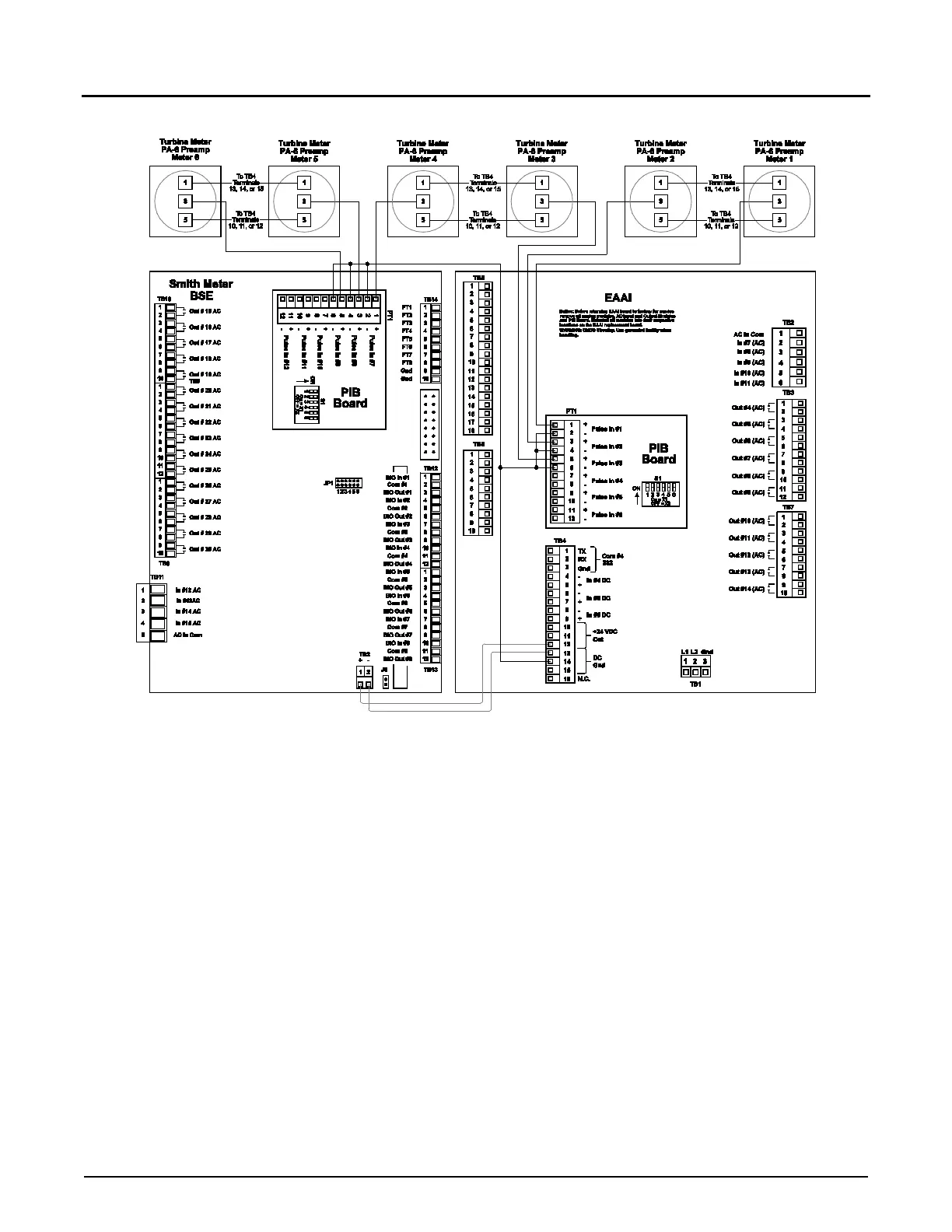

Figure 19. Wiring Diagram, Turbine Meters with PA-6 Preamps Single Pulse

Note: Wiring between transmitter and Accuload should be done with a shielded cable per each transmitter. If selected cable utilizes

twisted pairs, do not run more than one signal in a twisted pair.

Caution: For clarity, shields not shown. Connect shields to terminals 3, 13, 14, or 15 of Terminal Block 4.

PA-6 Terminal Connections

1: Common

3: Signal Output

5: Input Power

TechnipFMC Smith Meter AccuLoad III User Manual
