TechnipFMC Smith Meter AccuLoad III - KDC Pulse Output 3, 4, and 5 Connections to Smith Meter Ticket Printer

Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 57

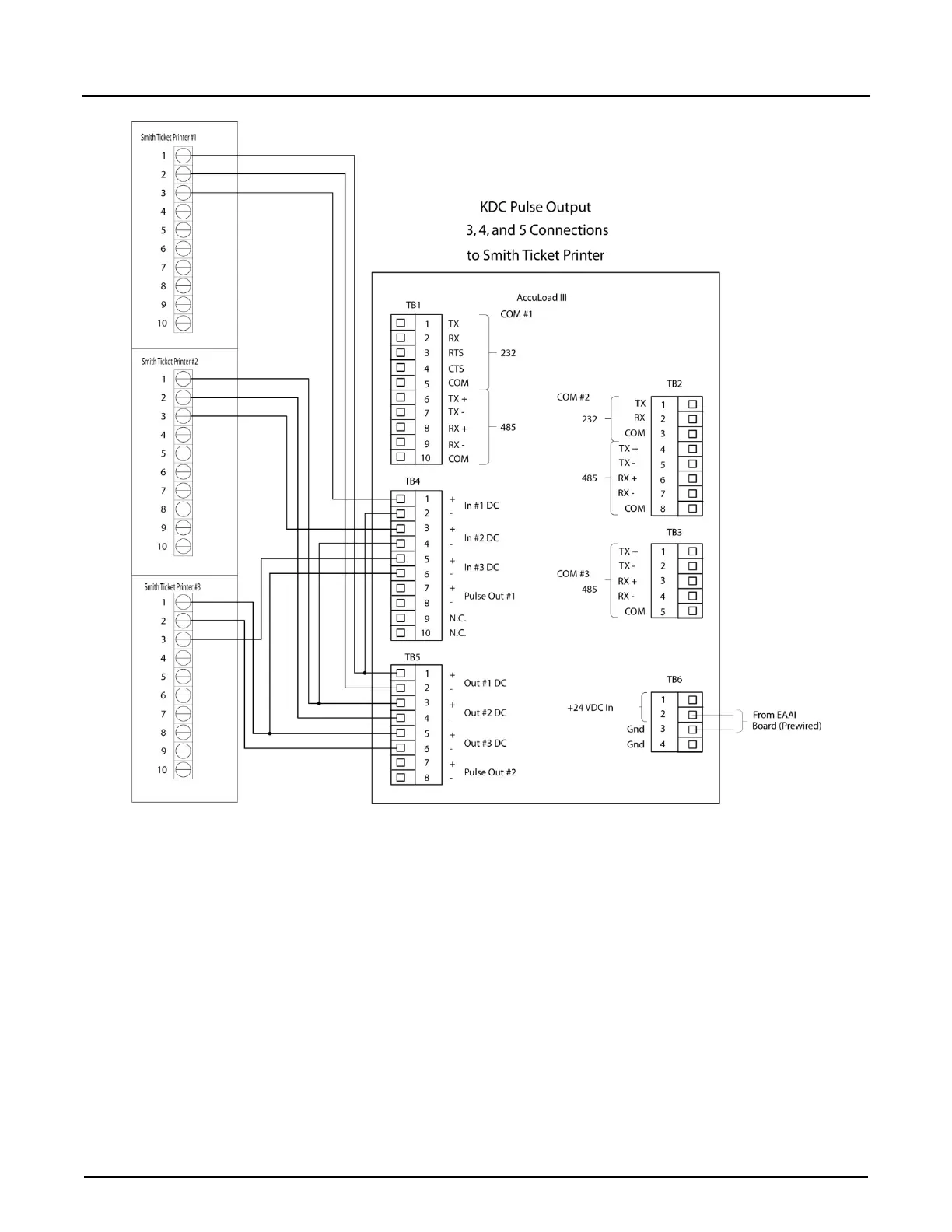

Figure 45. KDC Pulse Output 3, 4, and 5 Connections to Smith Meter Ticket Printer
Note: Maximum Frequency of these pulse outputs is 125 Hz.
Pulse Output 3: Terminals 1 and 2 on TB4 and 1 and 2 on TB5.
Pulse Output 4: Terminals 3 and 4 on TB4 and 3 and 4 on TB5.
Pulse Output 5: Terminals 5 and 6 on TB4 and 5 and 6 on TB5.
