Section IV – Diagrams
MN06135 Issue/Rev. 1.3 (6/17) 36

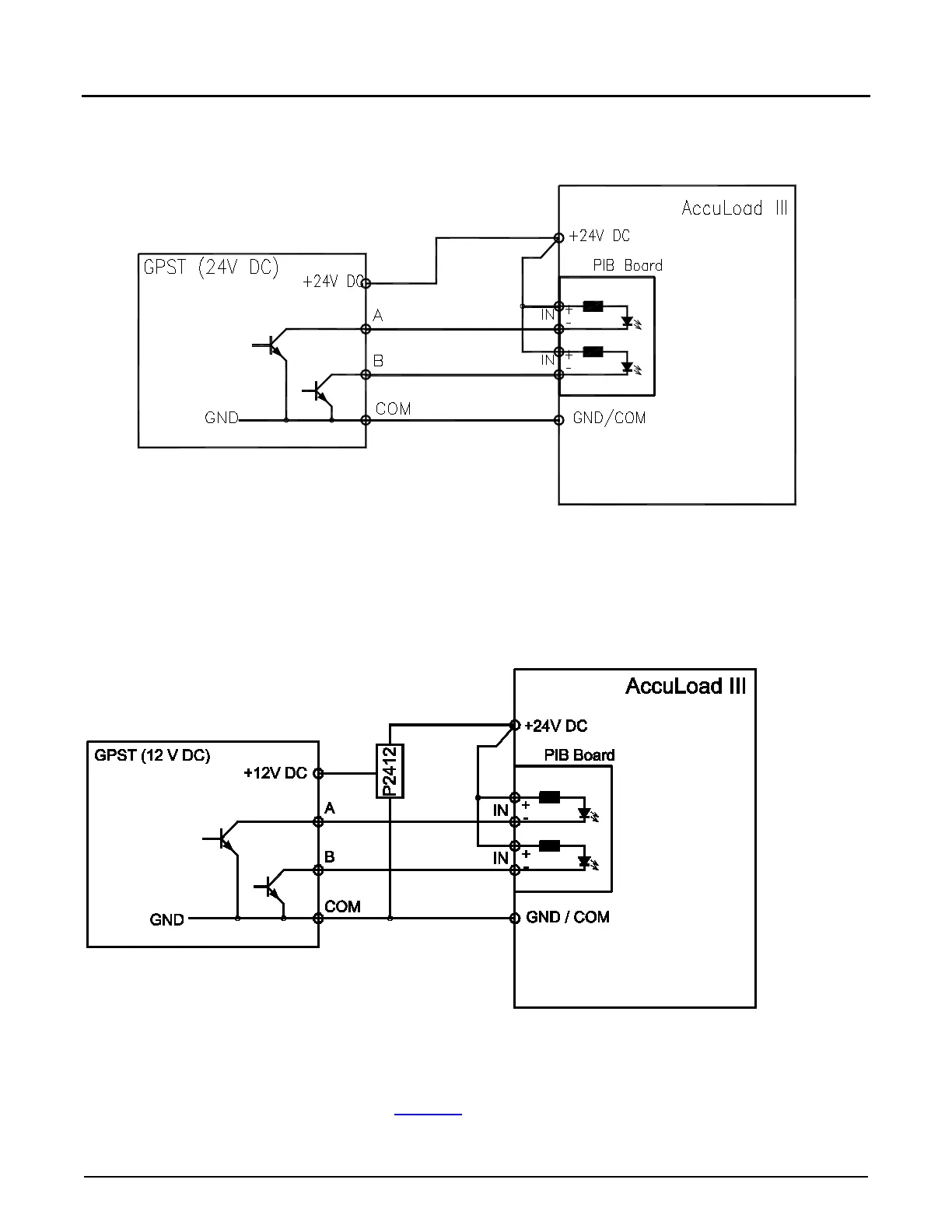

Figure 22B. Wiring Diagram, GPST Dual Pulse Transmitter + 24 Vdc with Open Collector Output with
Common Ground
Figure 22C. Wiring Diagram, GPST Dual Pulse Transmitter + 12 Vdc with Open Collector Output with
Common Ground Converter P2412 see MN06117
.
