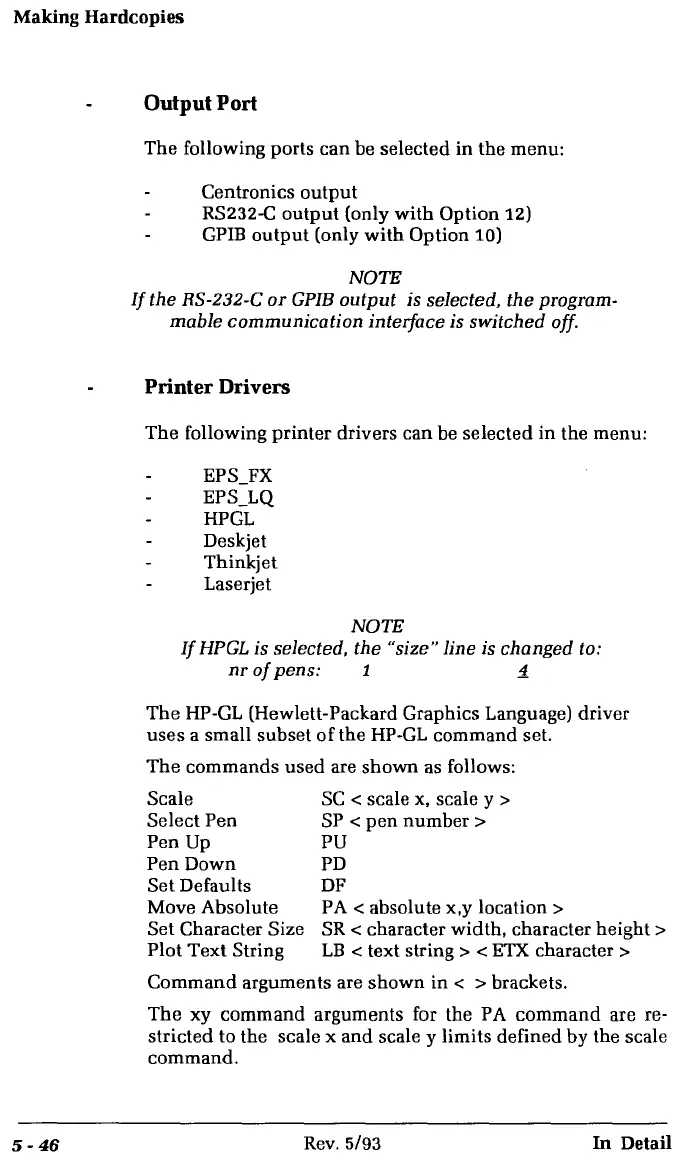

Making Hardcopies
5-46
Output Port
The
following ports
can
be selected
in
the
menu:
Centronics
output
RS232-C
output
(only
with
Option 12)
GPIB
output
(only
with
Option
10)
NOTE
If
the RS-232-C
or
GPIB
output is selected, the program-
mable communication interface is switched off.
Printer Drivers
The
following
printer
drivers
can
be selected
in
the menu:
EPS_FX
EPS_LQ
HPGL
Deskjet
Thinkjet
Laserjet
NOTE
If
HPGL
is selected, the "size" line is changed to:
nr
of
pens: 1
1.
The
HP-GL (Hewlett-Packard Graphics Language) driver
uses
a small
subset
of
the HP-GL
command
set.
The
commands
used
are
shown
as follows:
Scale
SC
< scale x, scale y >
Select
Pen
SP <
pen
number
>
Pen
Up PU
Pen
Down
PD
Set
Defaults DF
Move Absolute
PA<
absolute x,y
location>
Set Character Size SR < character
width,
character height >
Plot
Text
String
LB
< text string > <
ETX
character >
Command
arguments are
shown
in
< > brackets.
The
xy
command
arguments for the PA
command
are re-
stricted
to the scale x
and
scale y limits defined
by
the scale
command.
Rev. 5/93
In
Detail
