Making Hardcopies

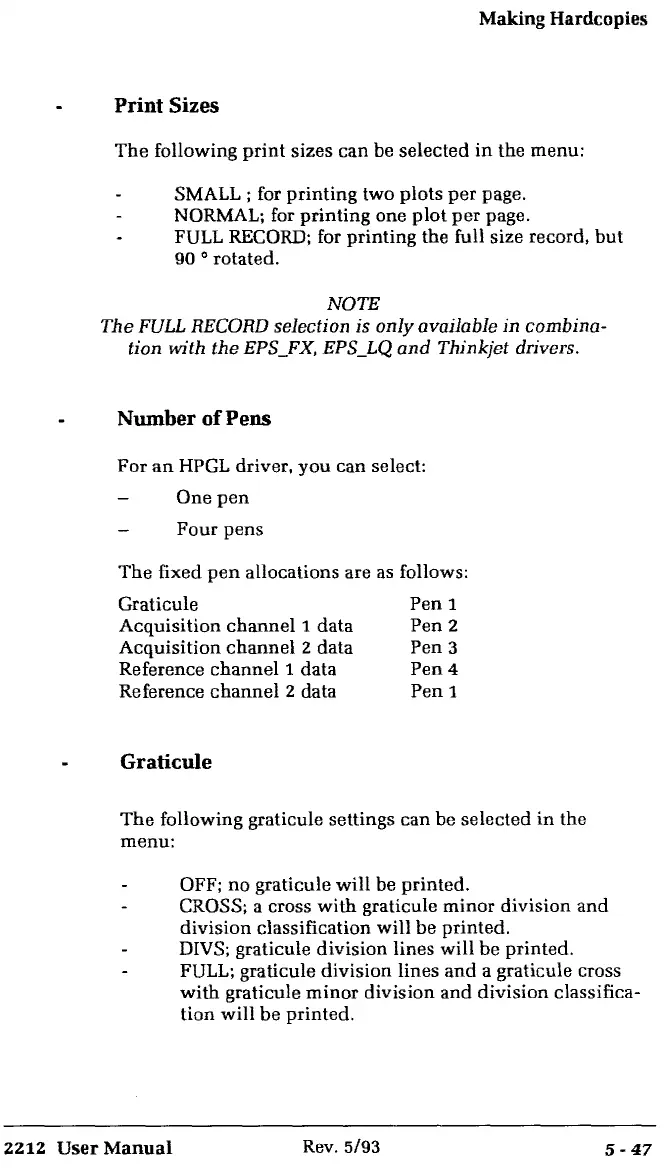

Print Sizes
The following print sizes can be selected in the menu:
SMALL; for printing two plots per page.
NORMAL; for printing one plot per page.
FULL RECORD; for printing the full size record, but
90 ° rotated.
NOTE
The FULL RECORD selection is only available in combina-
tion with the EPS_FX, EPS_LQ and Thinkjet drivers.
Number of Pens
For an HPGL driver, you can select:
One pen
Four pens
The fixed pen allocations are as follows:
Graticule
Acquisition channel 1 data
Acquisition channel 2 data
Reference channel 1 data
Reference channel 2 data
Graticule
Pen 1
Pen 2
Pen 3
Pen4
Pen 1
The following graticule settings can be selected in the
menu:
OFF; no graticule will be printed.
CROSS; a cross with graticule minor division and
division classification will be printed.
2212 User Manual
DIVS; graticule division lines will be printed.
FULL; graticule division lines and a graticule cross
with graticule minor division and division classifica-
tion will be printed.
Rev. 5/93
5-47
