-SCS Pulse Card (PGU and PMU) User's Manual Section 4: Pul

se card concepts

4200A-PMU-900-01 Rev. B March 2023 4-13

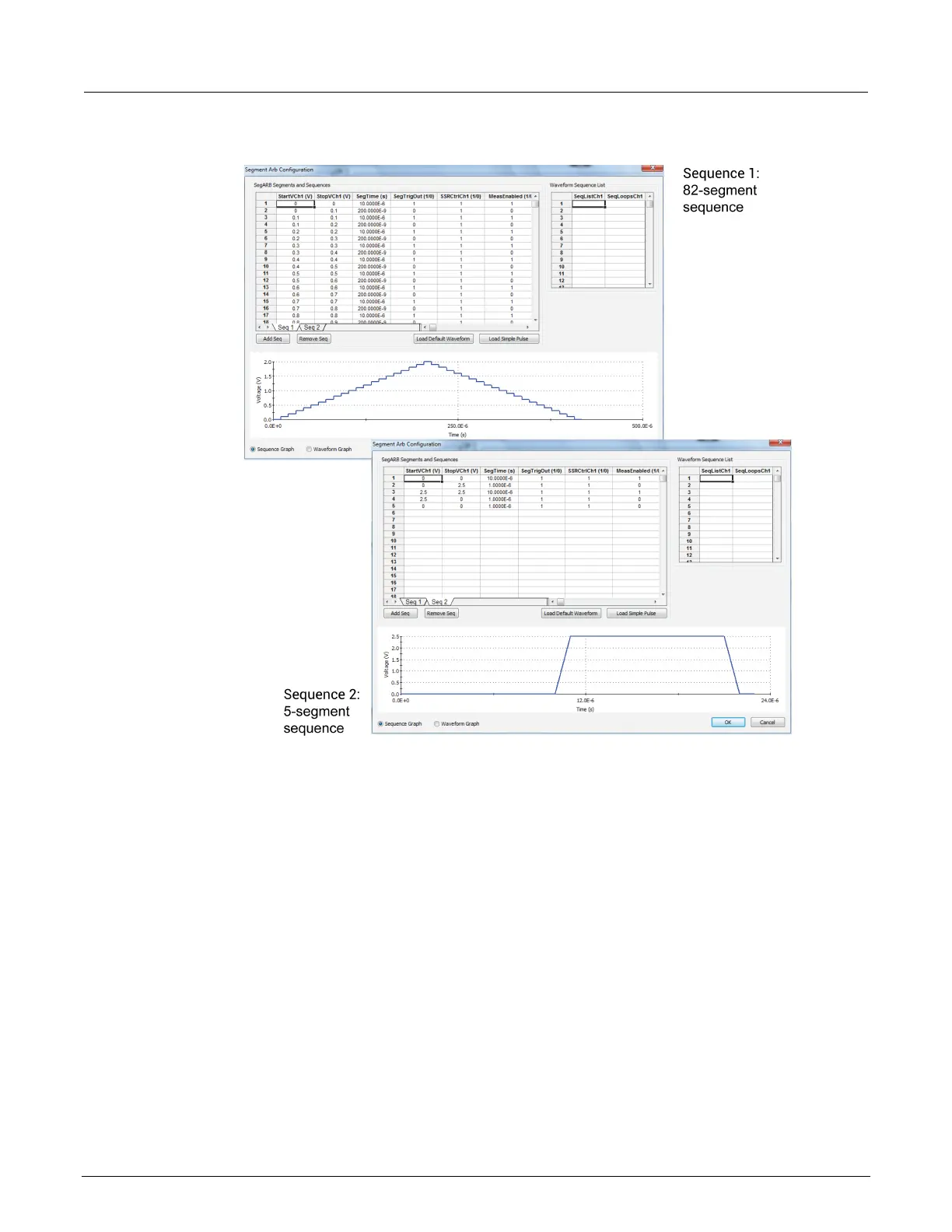

Figure 83: Two sequence definitions

A definition showing two sequences with looping is illustrated in the following figure.
