4: Pulse card concepts Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
4-14 4200A-PMU-900-01 Rev. B March 2023

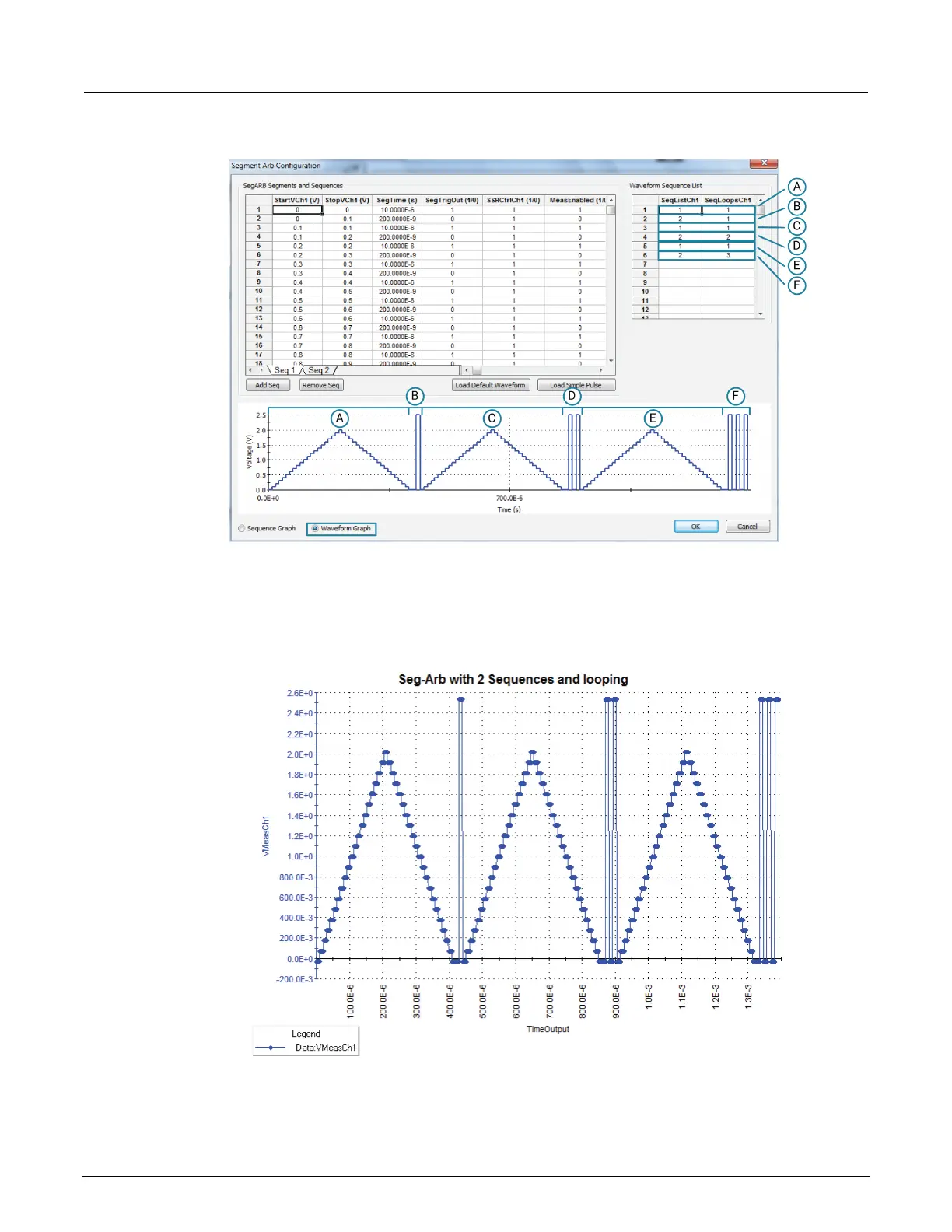

Figure 84: Definition showing two sequences with looping
The graph of the measurement of a two-sequence Segment Arb with looping, from UTM
pmu-segarb-complete in the pmu-dut-examples project, is shown in the following figure.
Figure 85: Graph of the waveform (two-sequence with looping) measurement
Pulse modes: Source, Segment Arb
