Sine waveform

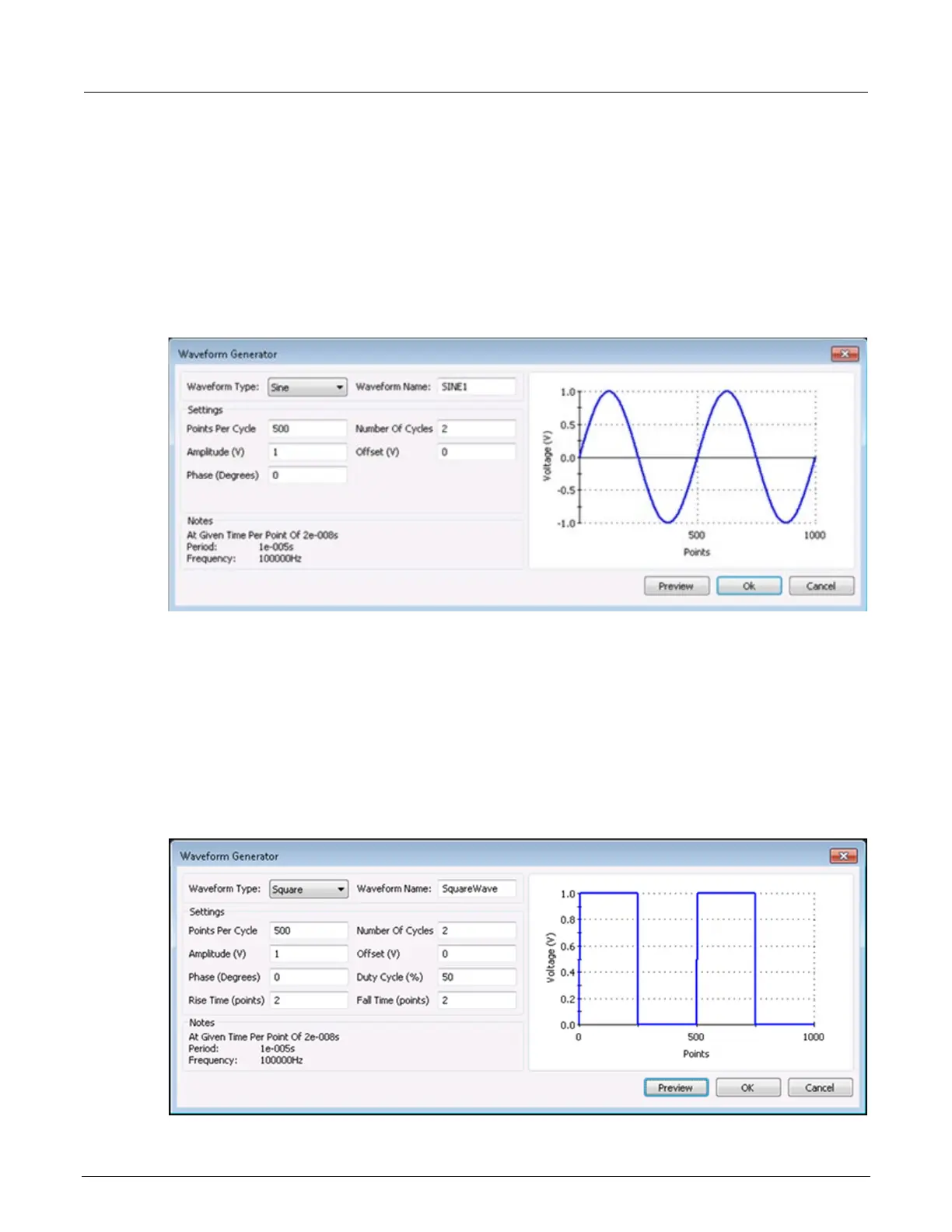

An example of a sine waveform is shown in the following figure. The waveform for this example is
named SINE1, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.
Figure 108: Sine waveform
Square waveform
An example of a square waveform is shown in the following figure. The waveform for this example is
named WAVE3, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.
Figure 109: Square waveform
