Tektronix Keithley 4225-PMU User Manual

Model 4200A
-SCS Pulse Card (PGU and PMU) User's Manual Section 5:
KPulse (for Keithley Pulse Cards)
4200A-PMU-900-01 Rev. B March 2023 5-15
Triangle waveform
An example of a triangle waveform is shown in the following figure. The waveform for this example is
named TRIANGLE1, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.

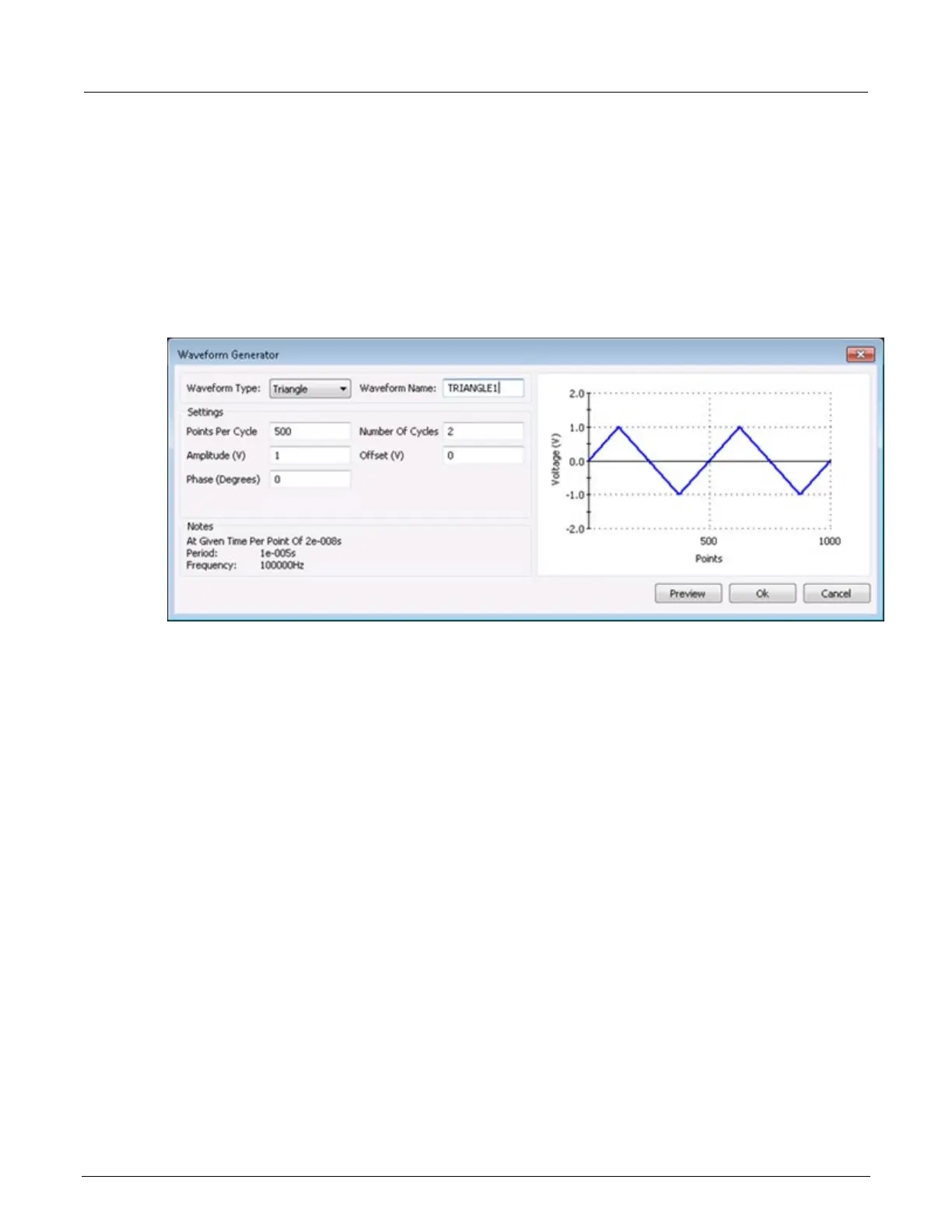

Figure 110: Triangle waveform
Custom waveform
An example of a custom waveform is shown in the following figure. The waveform for this example is
named CUSTOM1, but can be any name that is not already used in the Scratch Pad.
The voltage values for the waveform are retrieved from an imported file (.txt or .csv). After
creating a file (.txt or .csv) for the custom waveform, use Import Filename to import the file into the
Waveform Generator.
After importing the file, select Preview to show the waveform. Select OK to place the waveform in the
Scratch Pad.
