Tektronix Keithley 4225-PMU User Manual

Model 4200A
-SCS Pulse Card (PGU and PMU) User's Manual Section 8:
Testing flash memory
4200A-PMU-900-01 Rev. B March 2023 8-7
The pulse waveforms are a program pulse, an erase pulse, or a waveform made up of both program
and erase pulses. All of these waveforms are implemented by using the Segment Arb capability. For
more information about waveforms, refer to Pulse Source-Measure Concepts (on page 4-8
). The
following waveforms are examples of the different methods and voltage levels for programming
and erasing.

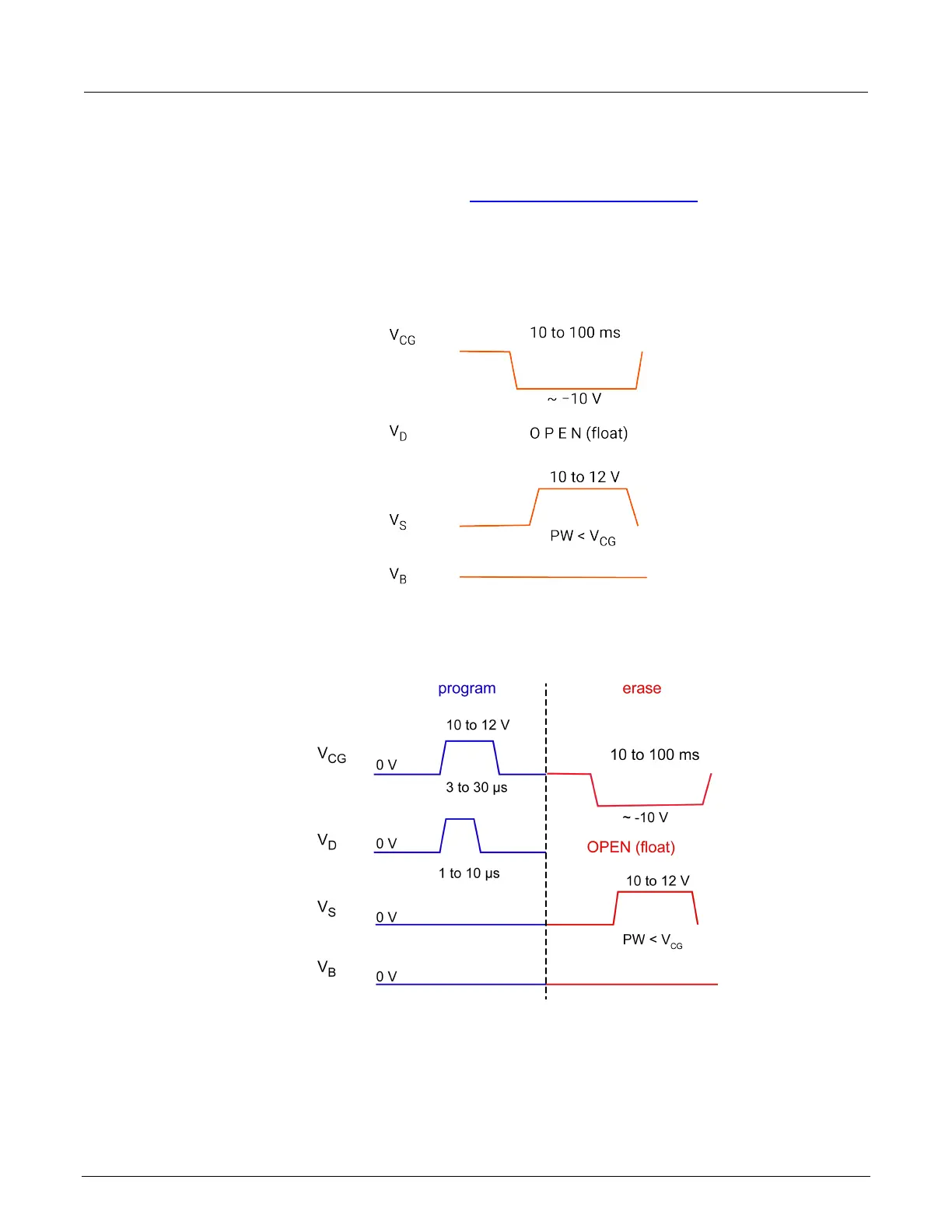

Figure 159: Program pulse waveforms for a floating gate DUT with separate pulse waveforms
for the DUT gate, drain, source, and bulk
Figure 160: Program + Erase pulse waveforms for a floating gate DUT, with separate pulse
waveforms for the DUT gate, drain, source, and bulk
