-SCS Pulse Card (PGU and PMU) User's Manual Section 3:
Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. B March 2023 3-29
PMU1-2 sweeps 0 V through 4 V in 0.5 V increments. The stepping channel is performing pulse
amplitude steps with four step points. On the outer loop, PMU1-1 pulses the four steps of 1 V through
2.5 V in 0.5 V increments.
Terminal Settings for the following figure
PMU1-1 (blue waveform) PMU1-2 (light blue waveform)
Number of steps or
sweep points
4 (automatically calculated)
9 (automatically calculated)

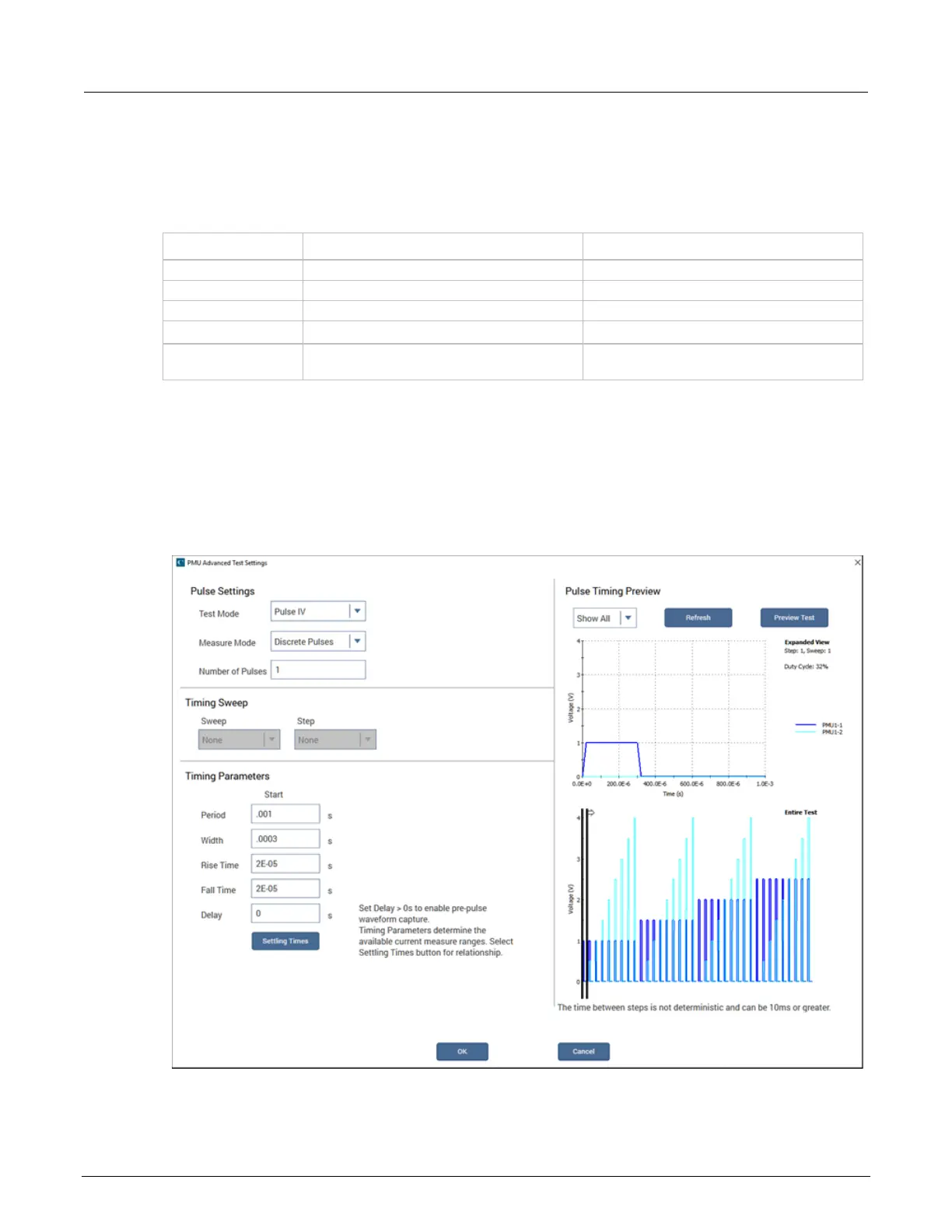

To preview the test, select the Test Settings tab, then select Advanced. Under Pulse Timing Preview,
you can preview a single channel or all channels in the test. The following figure has Show All
selected, which graphs all channels in the test. The Entire Test graph shows four steps of nine points
each. The sweep and step count displays the position of the cursor in the overall test. This example
has the number of pulses set to one.
Figure 58: PMU Timing Preview, two channels
