Tektronix Keithley 4225-PMU User Manual

Section
3: Setting up PMUs and PGUs in Clarius Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
3-32 4200A-PMU-900-01 Rev. B March 2023
The following figure uses the key test parameters shown in the following table.
Operation mode and voltages for the four channels
PMU1-1 PMU1-2 PMU2-1 PMU2-2
Operation mode
Pulse amplitude
step
Pulse amplitude
sweep Pulse voltage train Pulse voltage train
Start or base
voltage
1.5
0
1.5
0.5
Stop voltage
3
4
*
*
Step voltage
0.5
1
*
*
Number of points
4
5
*
*
* Not applicable. The pulse voltage trains are fixed pulse voltage levels; they do not vary during the sweep or
step points.

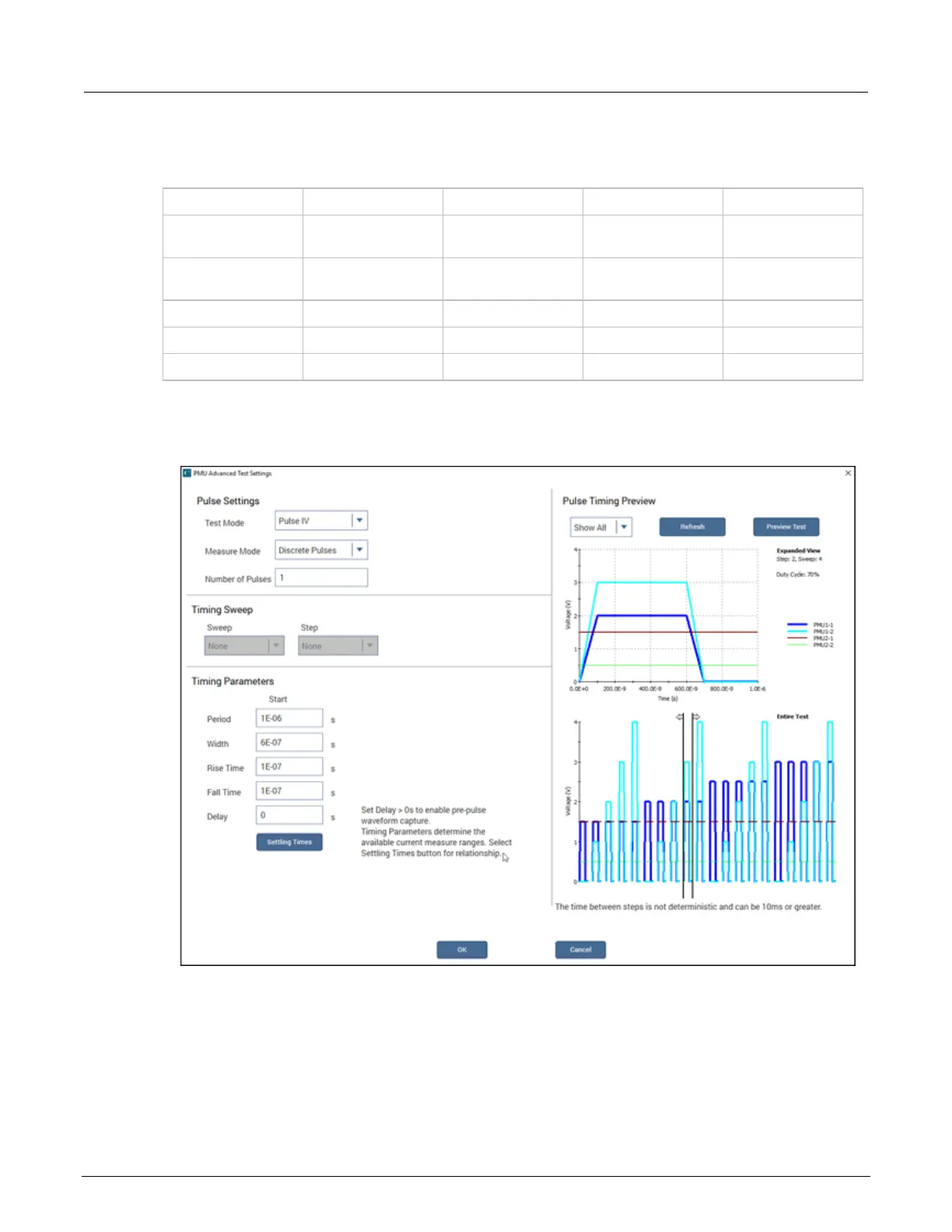

Figure 61: Four-channel sweep and step (2 pulse trains)
