-SCS Pulse Card (PGU and PMU) User's Manual Section 3:
Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. B March 2023 3-33

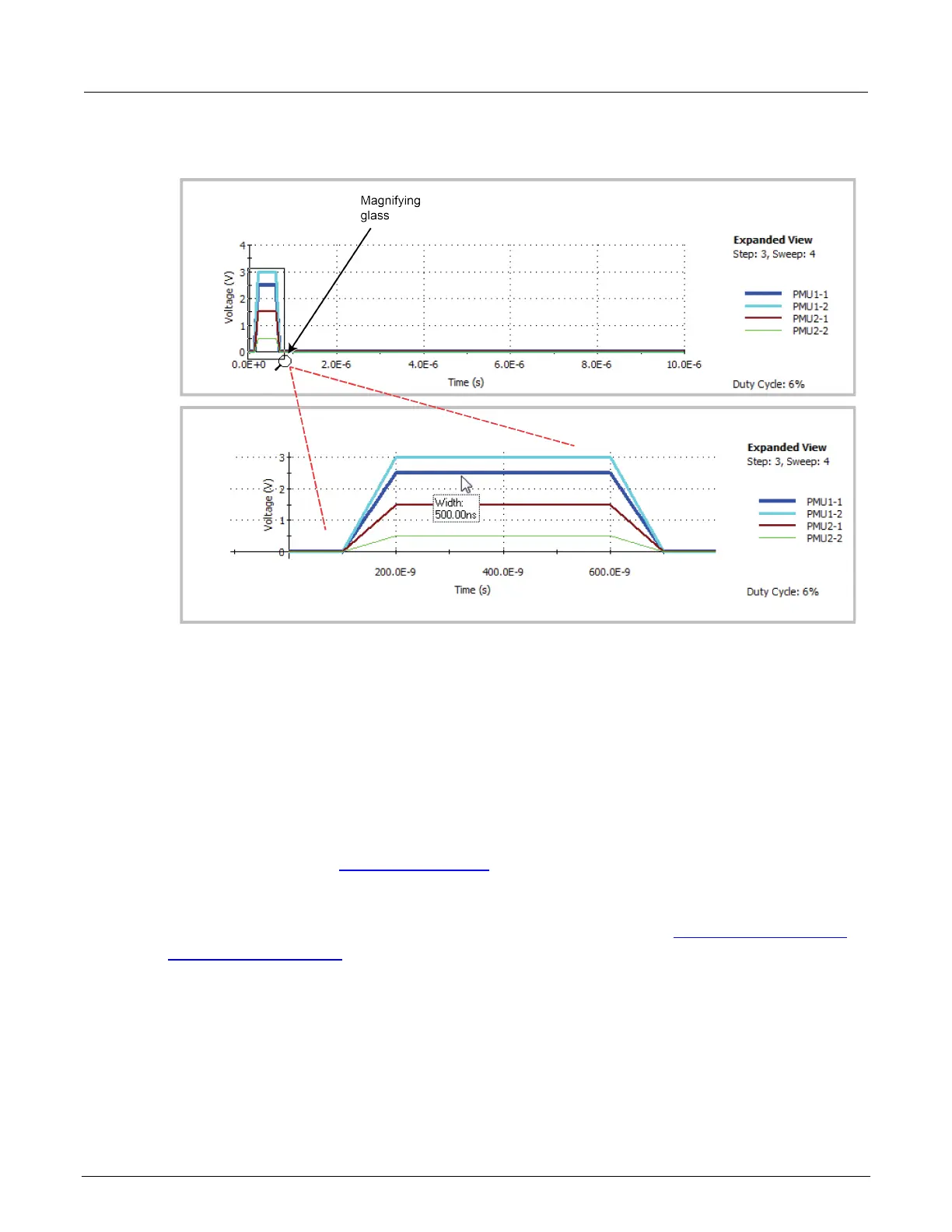

Figure 62: Zooming (Expanded View graph)
Scrolling the magnified area
To move the viewable area of the graph after you zoom in on a graph, hold down Shift while dragging
the mouse.
Entire Test zoom
You can use zoom on the Entire Test waveform graph. It works like zoom in the Expanded View. After
you zoom in, you can also move the viewable area of the graph using Shift+click. See the following
figure for a view of moving the lower graph using the mouse pointer. Note the gaps between the pulse
waveforms shown in the Expanded View zoom (on page 3-31
) figure; gaps also exist in the following
figure. These gaps indicate the time between sweep points where the PMU performs calculations for
the test while the pulse channels output 0 V. To learn more about how these gaps relate to how the
PMU handles DUT load variation and measure ranging during a test, see How LLEC adjusts pulse
output to the target levels (on page 2-25).
