Removal and Inst a l l a t i on Procedures
6-- 44
TDS5000B Series Se r vi c e Manual
Motherboard
assembly
T-15 TORX drive
screw (4)
Power cord
retainer (4)
VGA bracket
Front of the
instrument
Jack screw (2)
T-15 TORX drive
screw (9)
Rear View
Front View
Pouch bracket
Disconnect from
the motherboard
Disconnect from the
PC interface board
Motherboard
assembly
T-15 TORX
drive screw (6)
Motherboard
Disconnect from
the mother
(not supported SN
B030000 & above)
Heatsink
and fan

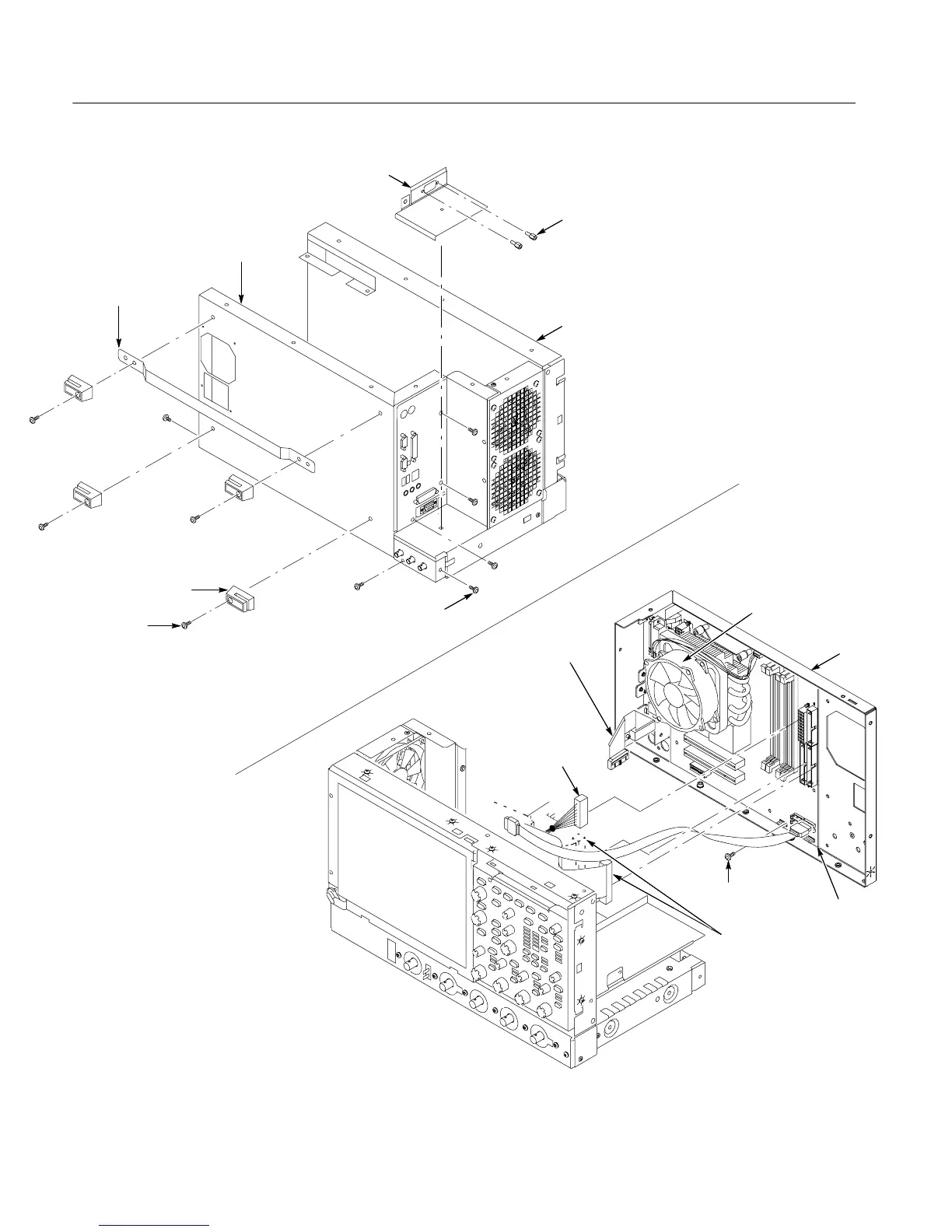

Figure 6--24: Motherboard removal
