Tektronix TDS5000B Series Read This First

Service Manual Information
Service Manua
lInformation
Use the follo
wing information to replace or clarify information contained in
your TDS5000B Series Digital Phosphor Oscilloscopes (071-1362-XX) service
manual. This service manual is on the Tektronix Web site.
Options
The TDS5054B and TDS5104B instruments have been upgraded to include the
following options: Option 18 (Touch Screen) and Option 3M (16 M points record
length).
Side and R
ear Panels

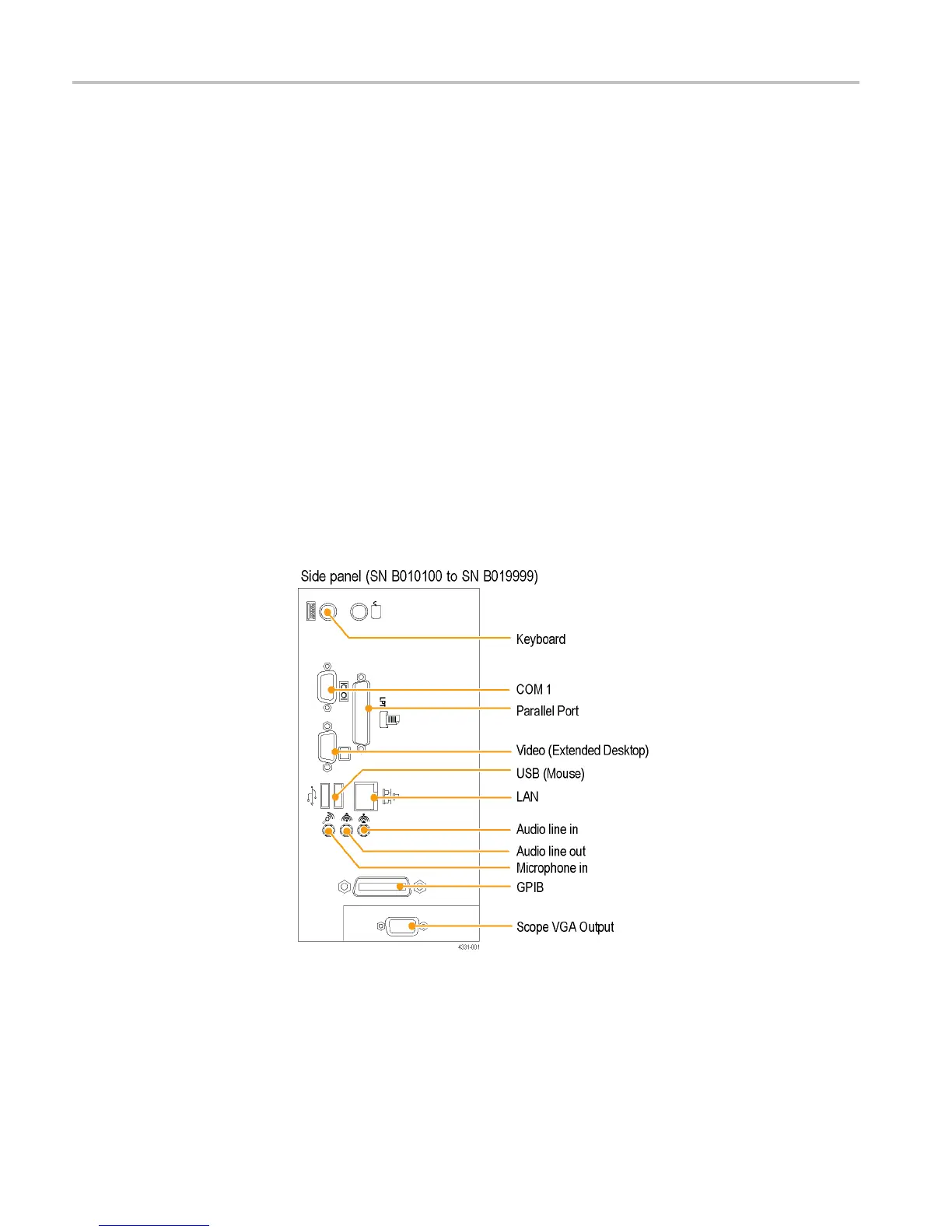

The following side-panel illustrations (in the Theory of Operation section) have
been upgraded to include the latest component l ocations and are for reference
only. U
se the instructions in the TDS5000B Series Quick Start User manual
(071-1355-XX) to connect your instrument.
