Tektronix TDS5000B Series Read This First

Removal and Inst a l l a t i on Procedures
TDS5000B Series Se r vi c e Manual
6-- 47
T-15 TORX drive screw (6)
Back of the
instrument
Acquisition
board
Disconnect from the
PC interface board
Guide pin (located
on the back of the
board)
Do not
remove
this screw!
Disconnect
from the PC
interface board
Interface
board

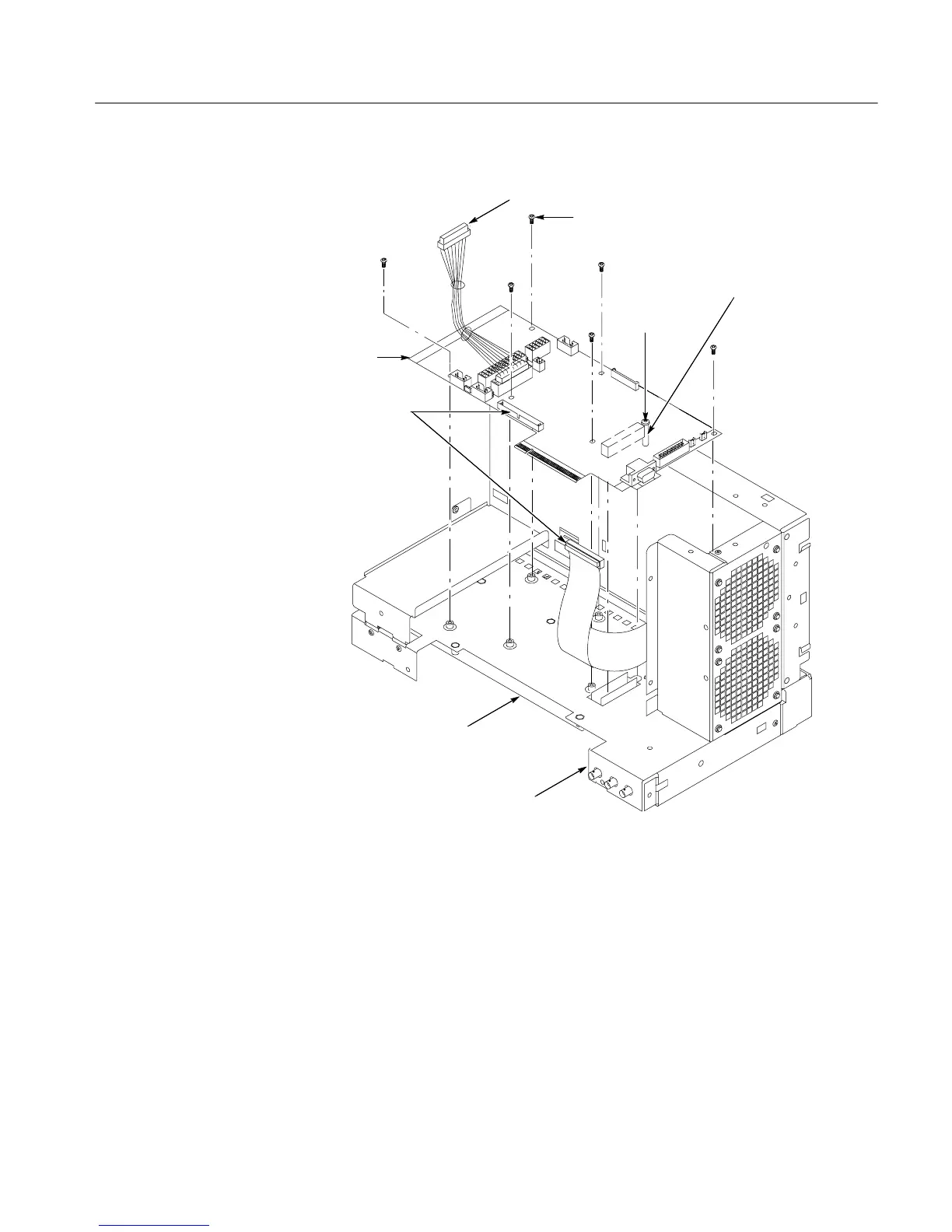

Figure 6--26: PC interface board removal
