Tektronix TDS5000B Series Read This First

Removal and Inst a l l a t i on Procedures
TDS5000B Series Se r vi c e Manual
6-- 13
Acquisition trim
Right side
panel
Left side
panel
Standard front
panel trim
Top co ver t rim
T-15 TORX drive
screw (2)
Carrying handle
CD-drive trim
Accessory tray door
VGA panel
Accessory tray (SN
B029999 and below)
T-15 TORX drive
screw (2)
T-15 TORX drive
screw (2)
T-15 TORX drive
screw (3)
Pem inset (3)
T-15 TORX drive
screw (2)
Power cord
retainer (2)
Front panel cover
T-15 TORX drive
screw (2)
Front hard drive option
front panel cover
Pouch

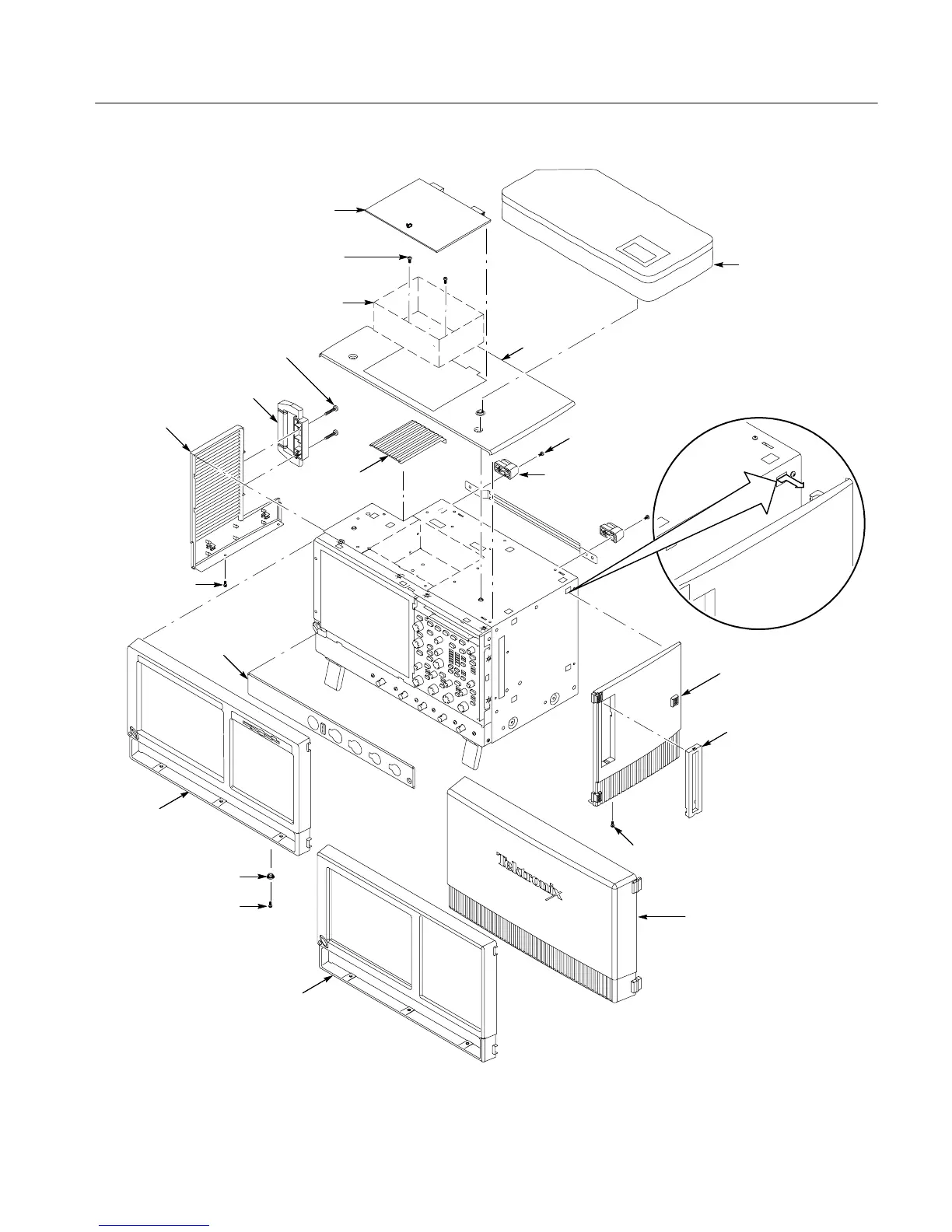

Figure 6--2: Trim removal
