Tektronix TDS5000B Series

Service Manual Information
PC Interface B
oard and M otherboard Cable Connections
Replace Figures 6- 17 and 6–18 in the Removal and Installation Procedures).

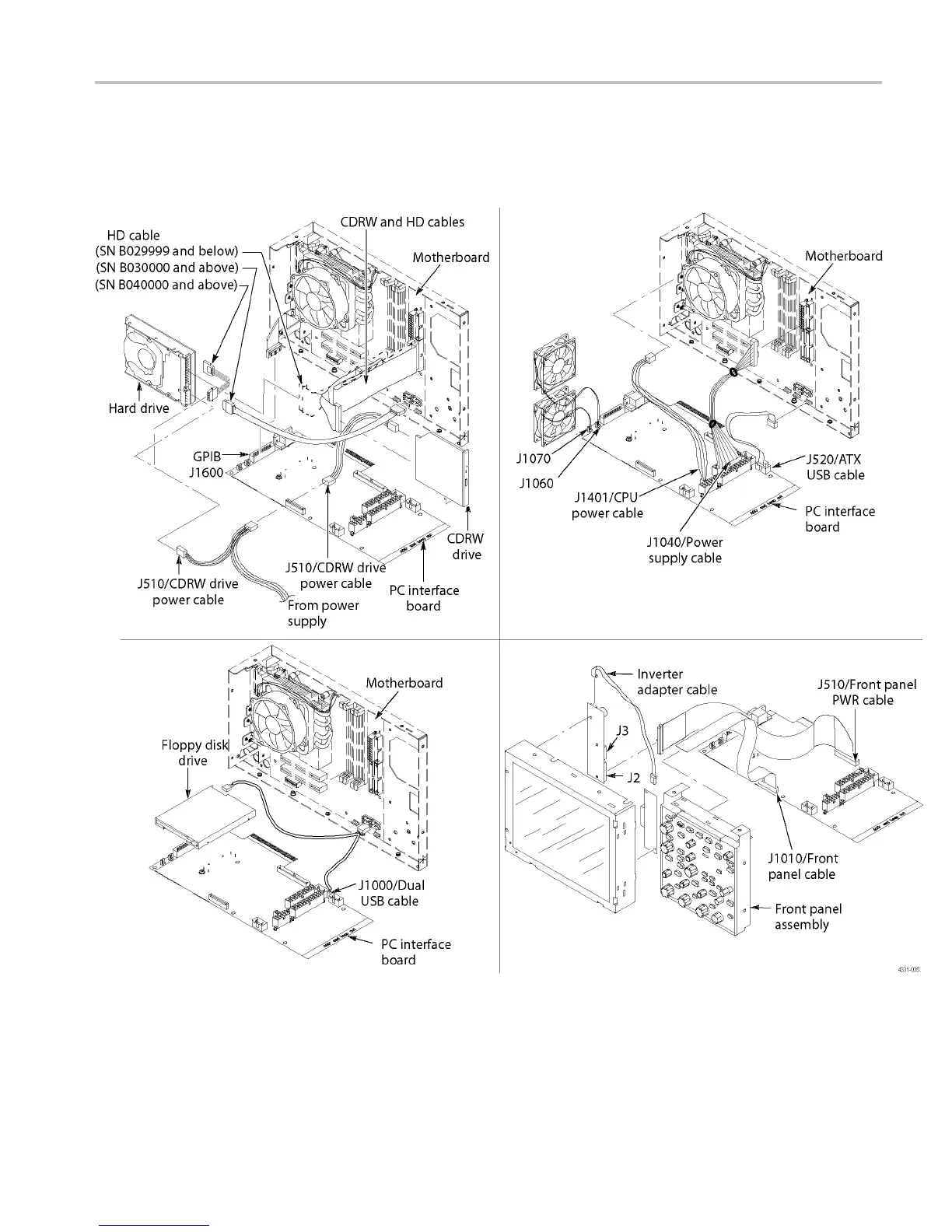

Figure 6-17: PC Interface board and motherboard cable connections
TDS5000B Read This First 15
