assembly. See Figure 6--9, page 6--23. Note t he pin 1 index mark on the
connector and t he black stripe on the cable for later reassembly.
d. Pul l the Front Panel assembly forward and remove from the oscilloscope.
4. Reinstallation: Do in rever se steps a through d to reinstall t he Front Panel
assembly.
J1 ribbon cable
Front panel assembly
Front panel square
opening (2)
T--15 TORX
drive screw (6)
Floppy disk
support tab
(2)
Chassis
slot (2)
T--15 TORX
drive screw (4)

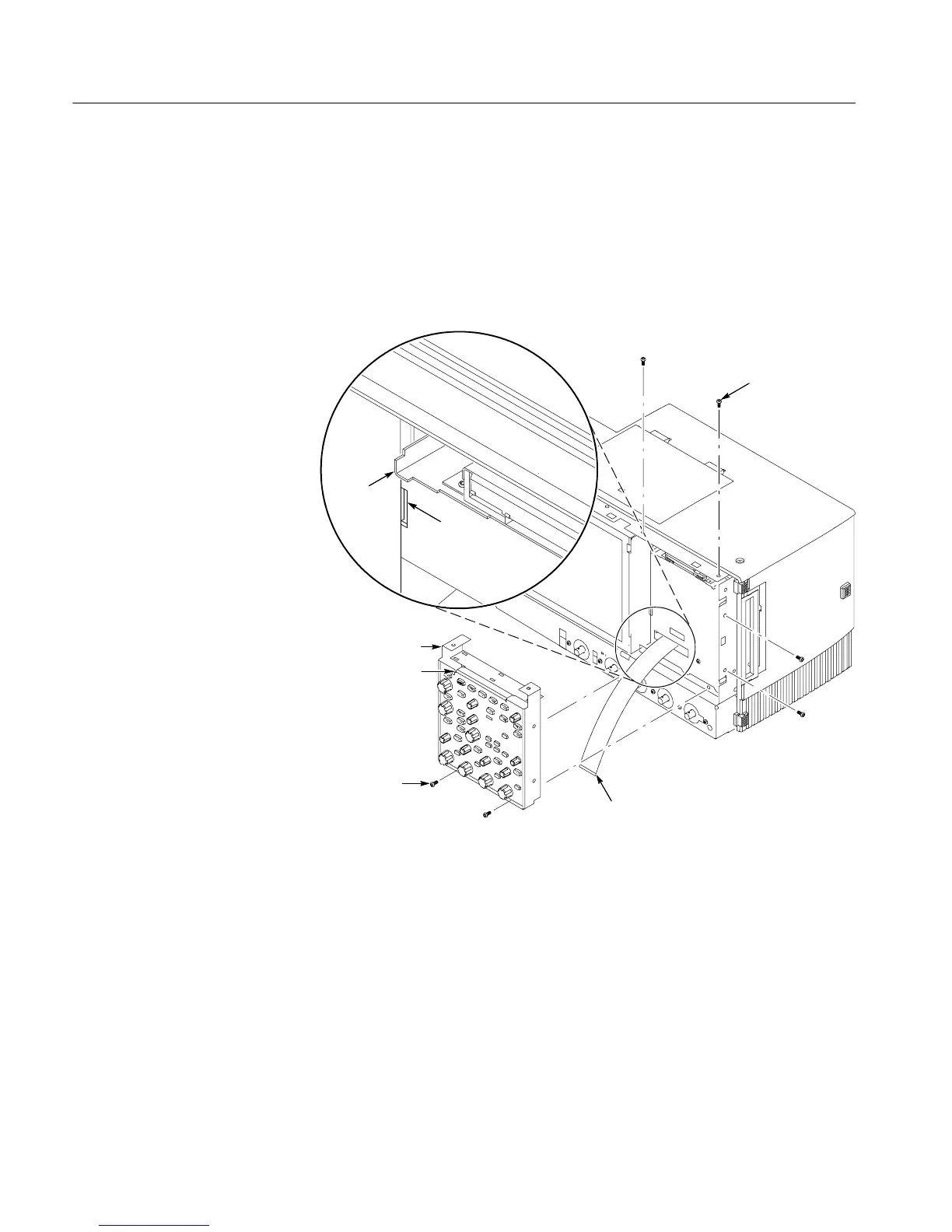

Figure 6--8: Front panel ass e m bly removal
