2.2 INSTRUMENT LAYOUT
Instrument layout includes front panel, rear panel connectors, and internal chassis layout.
2.2.1 FRONT PANEL
The front panel (Figure 2-1) includes two USB ports for peripheral device connections,
which can be used with mouse and keyboard as alternatives to the touchscreen interface,
or with flash drive for uploads/downloads (devices not included).

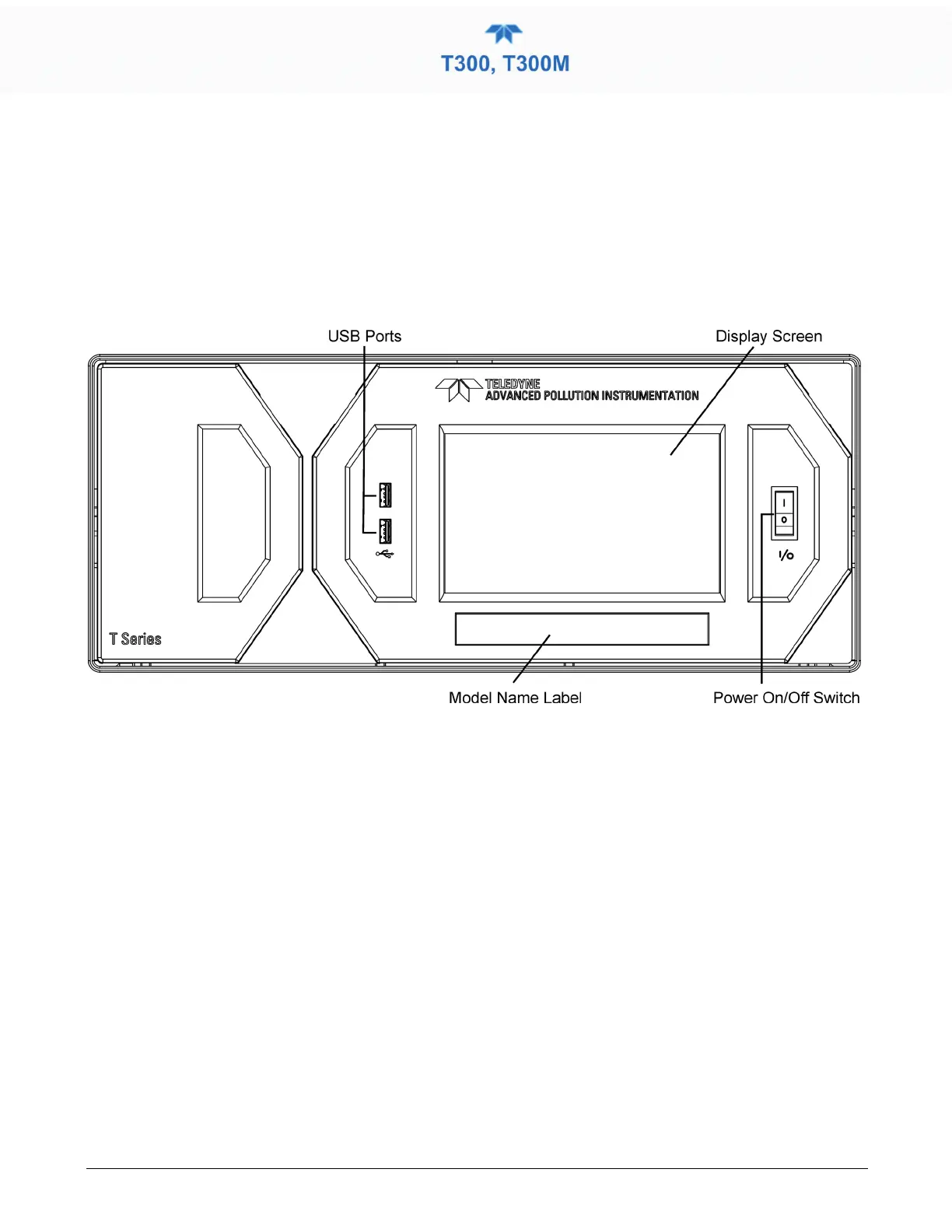

Figure 2-1. Front Panel Layout
